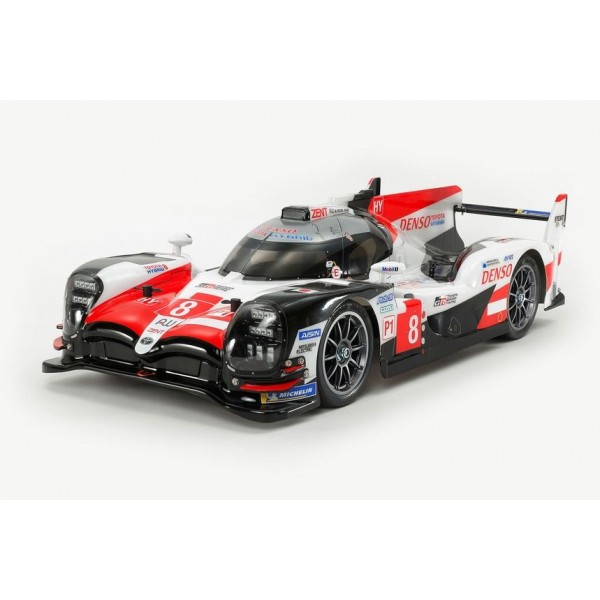

Tamiya 1/10 2WD Toyota GAZOO Racing TS050 Hybrid (F103GT Chassis)


LOADING IMAGES
Tamiya (TAM) Logo Tamiya 1/10 2WD Toyota GAZOO Racing TS050 Hybrid (F103GT Chassis)
$163.80
This is a Tamiya 1/10 2WD replica of the Toyota GAZOO Racing TS050 Hybrid on the F103GT Chassis

Availability: Please call for availability
We might still have one laying around..

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Overview

This is a 1/10 scale radio control replica of the Toyota GAZOO Racing TS050 Hybrid. It is a World Endurance Championship race car that competed throughout the WEC 2018-2019 season. This specific kit celebrates Toyota’s first ever win at the famed 24 Hours of Le Mans. It was a historic moment for Toyota as 2018 marked the automotive brands’ 20th attempt in securing a first-place finish after 388 intense laps on the famed Circuit de La Sarthe in France. It is only the second automotive company from Japan to ever win the 24 Hours of Le Mans.

The Tamiya replica sits atop the 2WD F103GT Chassis, which is easy to build and offers thrilling acceleration, thanks to its simple 2WD Direct Drive system with grippy rubber tires that supply plenty of traction.

F103GT - Fun, Responsive Direct Drive!
The F103GT chassis utilizes 2WD direct drive, with a rear-mounted motor. Its FRP double-deck frame employs 1.5mm upper and 2.5mm lower decks, cushioned by link-type arm and coil spring left/right independent front suspension. An FRP T-bar is the centerpiece of the rigid rear suspension setup, working in tandem with the friction plate and coil spring unit to provide a smooth drive. The height adjustable gear case allows a range of ground clearance settings, and contains a high-performance ball differential. Front uprights give a 3° caster angle, and are equipped with 850 ball bearings. Get ready for a fun, responsive drive!

Includes:

  • 540-Size brushed motor

Requires:

  • 2-channel radio
  • steering servo
  • ESC
  • 7.2-7.4volt battery with compatible charger
  • and Tamiya PS polycarbonate paint to complete.

features

  • Includes multi-piece polycarbonate body with separate body, shark fin, canard, light case and wing components. Molded ABS plastic parts are used for side mirrors.
  • Stickers are included to recreate the multitude of sponsor logos, and No.7 and No.8 car liveries, as well as parts of the red and black livery sections.
  • The F103GT chassis employs a double-deck FRP frame (lower; 2.5mm, upper; 1.5mm).
  • Utilizes front kingpin coil sprung suspension and a rear rigid type setup with FRP T-bar and friction damper.
  • 10-spoke gun metal color wheels are paired with super slick tires.

Specs

Adjustable Gear Ratio: Yes
Bearings: Yes
Length: 418mm
Width: 188mm
Height: 115mm
Wheelbase: 257mm.
Body Material: Polycarbonate
Body Stickers: Included
Chassis Material: FRP
Chassis Type: F103GT
Construction Type: Assembly Kit
Differential Type: Ball Pressure Plate
Drive Type: 2WD
Electronic Speed Control (esc): Not Included
Motor: 540-brushed type
Scale: 1/10
Shock Damper: Mono Friction Shock
Suspension: Front kingpin coil spring
Suspension: Rear FRP T-bar and friction damper
Terrain Use: On-road
Specs

Product Specifications

Part NumberTAM58665
Scale1/10
Drivetrain2WD
Kit TypeUnassembled Kit
Adjustable Gear RatioYes
BearingsYes
Length418mm
Width188mm
Height115mm
Wheelbase257mm.
Body MaterialPolycarbonate
Body StickersIncluded
Chassis MaterialFRP
Chassis TypeF103GT
Construction TypeAssembly Kit
Differential TypeBall Pressure Plate
Drive Type2WD
Electronic Speed Control (esc)Not Included
Motor540-brushed type
Scale1/10
Shock DamperMono Friction Shock
SuspensionRear FRP T-bar and friction damper
Terrain UseOn-road
