Overview

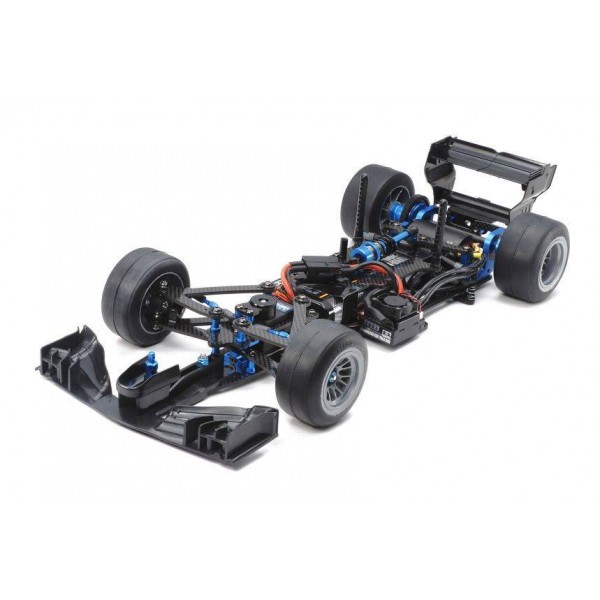

The TRF103 is a high-spec formula one chassis that takes the genre to a new level. This hi-spec 2WD formula chassis is built around carbon fiber lower and upper decks, with front lower and upper arms also crafted from carbon fiber plate. Front camber and caster angles can be altered via the upper arm attachment components. At the rear of the car, there is a choice of 2 suspension types: a link setup for high-grip surfaces; and a T-bar setup for lower grip conditions. Chassis roll is regulated by individual left and right friction dampers, while changing the carbon fiber rear shaft position allows 2 different wheelbases.
Requires:
- 2-channel radio
- steering servo
- 7.2volt battery & battery charger
- wheel/tires
- F1 Body set
features
- 1/10 scale R/C chassis assembly kit.
- The kit comes with a choice of rear suspension setups: a link setup suited to high-grip circuits, and a T-bar setup for use on more slippery tracks.
- Features carbon fiber front upper and lower arms. Alteration of caster (9 or 12 degrees) and camber (1, 1.5 or 2 degrees) angles.
- Dual rear friction dampers are employed (one on the left, one on the right) to govern chassis roll.
- Rear axle position can be altered, with a corresponding change in wheelbase - standard and short settings are available.
- Compatible with F104 bodies.
- Requires: 2-channel radio, steering servo, ESC, F-1 body set, 7.2volt battery & battery charger.
- 2.5mm thick Carbon Fiber Lower Deck
- 2.5mm thick Carbon Fiber Front Lower Arms
- 2.5mm thick Carbon Fiber Middle Brace
- 2.5mm thick Carbon Fiber Lower Brace
- 2.0mm thick Carbon Fiber Rear Bulkhead Plate
- Carbon Fiber Rear Shaft & Integrated Diff Housing
- TRF Damper (HL Cylinder & Titanium Coated Shaft)
- 2.0mm thick Carbon Fiber Upper Deck
- 2.5mm thick Carbon Fiber Front Upper Arms
- 2.5mm thick Carbon Fiber Upper Arm Mount
- 2.5mm thick Carbon Fiber Upper Brace
- FRP T-Bar
- Left & Right Roll Dampers
- Aluminum Servo Mounts
- Aluminum Clamp Type Wheel Hubs
- Aluminum Motor Mount
- Aluminum Diff Housing
- Aluminum Motor Spacer
- Aluminum Turnbuckle Shafts
- Hi-Torque Servo Saver
- 04 Module Spur Gear (96T)
- 04 Module Pinion Gear (24T)
Adjustable Gear Ratio: YesSpecs
Bearings: Includes full ball bearings
Body Material: Not Included
Chassis Material: Carbon Fiber
Chassis Type: TRF103
Construction Type: Assembly Kit
Differential Type: Ball Pressure Plate
Drive Type: 2WD
Scale: 1/10
Shock Damper: Aluminum oil filled
Suspension Coil: Spring Front/Mono Shock Rear
Terrain Use: On-Road- Specs
Product Specifications
Part Number TAM42318 Scale 1/10 Drivetrain 2WD Kit Type Unassembled Kit Adjustable Gear Ratio Yes Bearings Includes full ball bearings Body Material Not Included Chassis Material Carbon Fiber Chassis Type TRF103 Construction Type Assembly Kit Differential Type Ball Pressure Plate Drive Type 2WD Scale 1/10 Shock Damper Aluminum oil filled Suspension Coil Spring Front/Mono Shock Rear Terrain Use On-Road - Reviews
