- Overview
Overview

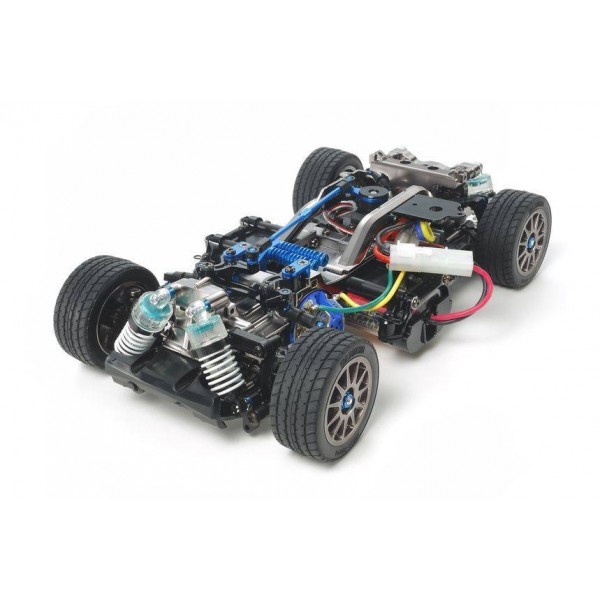

The Tamiya M-05 M-Chassis platform receives a significant makeover with the introduction of the NEW M-05 Version II Pro! The M-05 chassis has been a favorite platform for M-chassis club racers for years. The new tweaks and enhancements take advantage of new battery technologies as well as tried and true suspension tweaks used in many of Tamiya's touring car platforms. Furthermore, it features a number of upgrades, to improve balance and lower the chassis' center of gravity, using a variety of option parts to make it a highly drivable radio control car.
Requires:
- M-Chassis compatible body
- Type 540 Motor
- 60D Tires
- 2-Channel R/C System w/ESC
- R6/AA/UM3 batteries for transmitter
- Battery Pack & Charger
features
- Semi gloss black metal-plated frame and wheels
- Frame supports square-shaped battery packs and low-profile servos
- One-Piece Suspension Arms (allow rebound stroke adjustment)
- Aluminum Motor Mount
- DF-03 Heat Sink Bar Set
- M-05 Full Ball Bearing Set
- M-05 Aluminum Steering Posts (Blue)
- M-05 Aluminum Turnbuckle Steering Rods (Blue)
- M-05 Aluminum Servo Mount
- CVA Super Mini Dampers
- Monocoque Frame
- Front-Wheel 2WD
- 3-Bevel Differential Gear
- 3-Piece Steering Tie-Rod
- 4-Wheel Double Wishbone Suspension
- Front & Rear CVA Super Mini Oil Dampers (Clear)
- Type 540 Motor (sold separately)
- Electronic Speed Controller (sold separately)
Length: S=300mm, M/L=307mmSpecs
Width: 165mm
Wheelbase: S=210mm, M=225mm, L=239mm
Tread (Front & Rear): 138mm
Gear Ratio: 5.8:1- Specs
Product Specifications
Part Number TAM58593 Scale 1/10 Drivetrain 2WD Kit Type Unassembled Kit Length S=300mm, M/L=307mm Width 165mm Wheelbase S=210mm, M=225mm, L=239mm Tread (Front & Rear) 138mm Gear Ratio 5.8:1 - Reviews
