- Overview
Overview

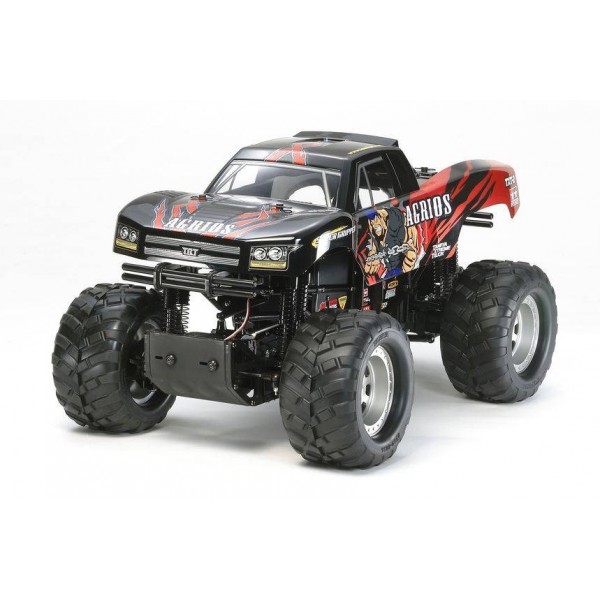

This is the Agrios 4x4x4 Monster truck. The truck body sits on the Tamiya TXT-2 chassis which is an evolution of the original TXT-1. Agrios, a mythical Greek giant, gives his name to this tough monster truck, which can go over obstacles and rough terrain with ease. The combined use of metal parts with tough plastic lends the model a genuine feeling of power and scale. The truck comes equipped with two 540-brushed motors and is capable of 4-wheel steering when a second servo is added to the rear axle.
The heavy-duty twin motor TXT-2 Chassis
This shaft-driven 4WD machine's power comes from the parallel-positioned twin motors in the center of the car and is transferred to the front and rear axles via propeller shaft. Front and rear axle cases contain 3-bevel differential gears and have a 2-level transmission. The chassis is equipped with 4-link rigid suspension, each wheel having dual oil dampers. All link rods are made using resistant aluminum, giving the strength to support the heavy-duty frame. Massive 151mm diameter, 82mm width tires are mounted on metal-plated deep rim wheels and are combined with the suspension to handle even the worst of off-road surfaces.Requires:
- 2-channel radio
- servo
- ESC
- 7.2 volt battery & compatible battery charger
- Tamiya PS polycarbonate paint
features
- Black resin-covered aluminum shaft side-frames are fitted with black aluminum panels.
- Resin upper frame serves as R/C unit cover and battery holder.
- Centrally-positioned gearbox with front and rear aluminum beams.
- Front and rear axle cases contain 3-bevel differential gears and have a 2-level transmission.
- Length: 510mm, Width: 344mm Height: 282mm
- 82mm width tires
Adjustable Gear Ratio: FixedSpecs
Bearings: Shielded ball bearing & Metal Bushings included
Body Material: Polycarbonate
Body Stickers: Included
Chassis Material: Plastic
Construction Type: Assembly Kit
Differential Type: Gear
Drive Type: 4WD
Electronic Speed Control (esc): Not Included
Led Light Buckets: no
Motor: 540-brushed type
Requires: A 2-channel radio gear, electronic speed control, 7.2 volt battery & charger, Tamiya PS spray paint.
Scale: 1/10
Shock Damper: Oil-filled damper
Suspension: 4-link
Terrain Use: Multi-Purpose
Length: 510mm, Width: 344mm, Height: 282mm
Weight: 3,995g (without R/C mechanism and battery)
Wheelbase: 330mm
F/R Tread: 262mm
F/R Tire Width/Diameter: 82/151mm
Suspension: Front/Rear 4-link rigid
Dampers: 2 CVA Oil Shock Units per wheel
Gear Ratio: 26.3:1- Specs
Product Specifications
Part Number TAM58549 Scale 1/10 Drivetrain 4WD Kit Type Unassembled Kit Adjustable Gear Ratio Fixed Bearings Shielded ball bearing & Metal Bushings included Body Material Polycarbonate Body Stickers Included Chassis Material Plastic Construction Type Assembly Kit Differential Type Gear Drive Type 4WD Electronic Speed Control (esc) Not Included Led Light Buckets no Motor 540-brushed type Requires A 2-channel radio gear, electronic speed control, 7.2 volt battery & charger, Tamiya PS spray paint. Scale 1/10 Shock Damper Oil-filled damper Suspension Front/Rear 4-link rigid Terrain Use Multi-Purpose Length 510mm, Width: 344mm, Height: 282mm Weight 3,995g (without R/C mechanism and battery) Wheelbase 330mm F/R Tread 262mm F/R Tire Width/Diameter 82/151mm Dampers 2 CVA Oil Shock Units per wheel Gear Ratio 26.3:1 - Reviews
