- Overview
Overview

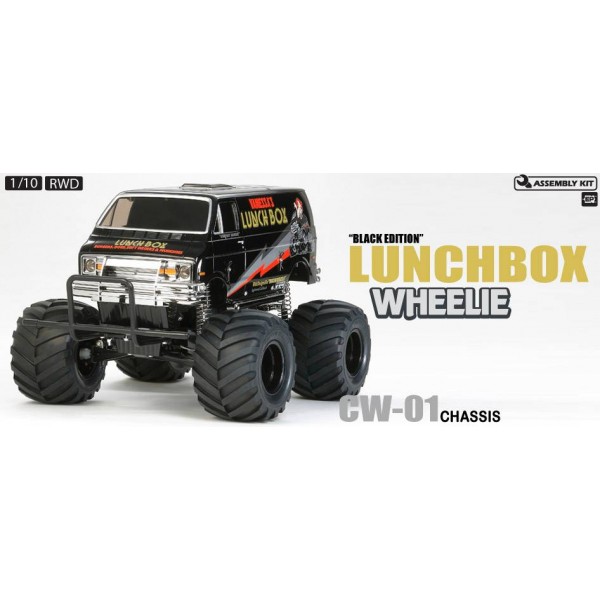

The ever popular 1/12 scale R/C Lunch Box van is available as a special "Black Edition" model, featuring a stylish combination of a Black ABS molded body and chrome-plated wheels. The R/C Lunch Box (first released in 1987) was loved for its camp appearance as much as for its R/C performance. The boxy minivan body is raised up over the monster truck wheels to ensure that this R/C van will get attention anywhere you choose to drive it.
The durable and easy-to-assemble 2WD chassis employs a box type frame, and features front independent swingarms and a rear rolling rigid suspension. Big 115mm diameter tires offer dynamic running on even the toughest of surfaces. Sealed gearbox protects the diff gear from dirt and sand during off-road driving. Rear mounted wheelie bar enables wild stunt driving.Requires:
- Radio: 2-channel with steering servo
- Battery: 6-cell, 7.2V NiMH stick pack with standard connector
- Battery Charger: To match selected battery
- Transmitter Batteries: Four or eight depending on transmitter
- Tools and track equipment
features
- ā—¸Length: 385mm, Width: 290mm, Height: 225mm
- Weight: 1,560g (not including R/C mechanism and battery)
- Wheelbase: 207mm
- Tread: 212mm (Front), 216mm (Rear)
- F/R Tire Width/Diameter: 71/115mm
- ABS Box Type Frame
- Rear-wheel 2WD
- Suspension: Independent Swingarm (Front), Rolling Rigid (Rear)
- F/R Friction Dampers
- 3-Bevel Differentials
- Gear Ratio: 14.7:1
- Motor Type: 540
- Electronic Speed Controller: Included
- Special Feature 1: 1/10 scale R/C assembly kit
- Special Feature 2: Body and wheels are black ABS
- Special Feature 3: Box type frame 2WD chassis is equipped with front swing axle and rear rolling rigid suspension
- Special Feature 4: Fully-enclosed gearbox protects against dirt and debris
- Special Feature 5: 115mm diameter tires
- Special Feature 6: Wheelie bar included
- Special Feature 7: Tamiya TEU-105BK forward and reverse brushed motor speed control. (equipped with low voltage protection feature)
- Special Feature 8: Includes Tamiya 540 brushed motor
Scale: 1/10 scaleSpecs
Drive-train: 2WD RWD
Body material: ABS Plastic
ESC type: TEU-105BK
Motor type: 540-brushed type
Vehicle
Length: 15.1" (385mm)
Width: 11.4" (290mm)
Height: 8.8" (225mm)
Weight: 3.4lbs (1560g), approximate
Body
Length: 11.8" (300mm)
Width: 5.8" (148mm)
Height: 4.3" (110mm)- Specs
Product Specifications
Part Number TAM58546 Scale 1/12 Drivetrain 2WD Kit Type Unassembled Kit Scale 1/10 scale Drive-train 2WD RWD Body material ABS Plastic ESC type TEU-105BK Motor type 540-brushed type Length 11.8" (300mm) Width 5.8" (148mm) Height 4.3" (110mm) Weight 3.4lbs (1560g), approximate - Reviews
