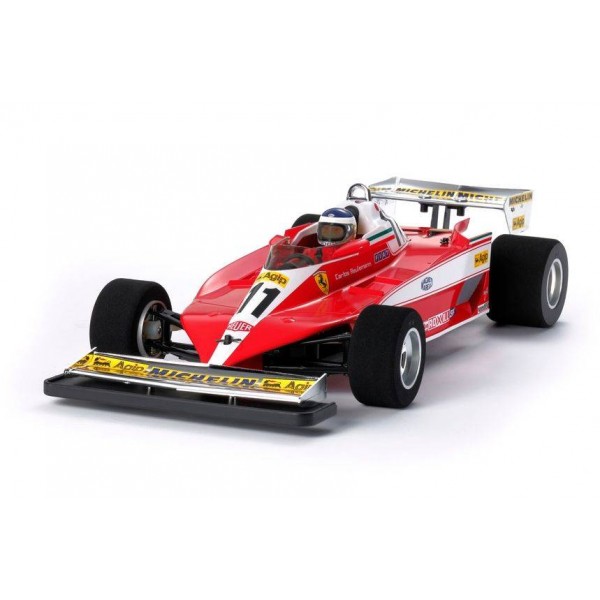

Tamiya F104w Ferrari 312T3 1/10 2WD F-1 Assembly Kit


LOADING IMAGES
Tamiya (TAM) Logo Tamiya F104w Ferrari 312T3 1/10 2WD F-1 Assembly Kit
$229.99
This is the Tamiya Ferrari 312T3 F104w Assembly Kit. Using the F103W, this 1/10 2WD kit recreats the F-1 used in the1978 South African Grand Prix

Availability: Please call for availability
We might still have one laying around..

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Overview

The Ferrari 312T3 returns! Not seen since 1991, this special limited-edition release has been re-imagined on the Tamiya F104W F-1 chassis.

The 312T3 made its debut in the 1978 South African Grand Prix. Underneath its aerodynamically polished body with a 3-liter 12-cylinder 510hp engine. Drivers C. Reutemann and G. Villeneuve took the 312T3 to 4 victories for the season and the runner-up spot in the 1978 Constructors’ Championship.

Requires:

  • R/C equipment (transmitter, servo, ESC)
  • battery pack with charger
  • Tamiya PS spray paint

features

  • 1/10 scale R/C model assembly kit. Length: 447mm, width: 201mm.
  • Polycarbonate & ABS body parts. It features a bumper to go under the front wing, and a helmeted driver figure.
  • Wings and wheels are metal plated.
  • Bonus body! A separate standard polycarbonate body is also included in the kit.
  • The F104W chassis has F103 front suspension arms to replicate the wide form of the 312T3. It utilizes an FRP semi-double deck (upper: 2mm, lower: 3.2mm) and longitudinal battery position.
  • Highly efficient direct drive 2WD features the motor pinion directly connected to the spur gear which has a built-in ball differential.
  • Gear case allows 5 different ground clearances.
  • Kingpin coil spring front and T-bar rear suspension setups provide smooth and precise driving characteristics.
  • 2 car markings: (Nos.11 and 12 included).

Specs

Adjustable Gear Ratio: Yes
Bearings: Yes
Body Material: Polycarbonate & ABS Plastic
Body Stickers: Vinyl
Chassis Material: FRP
Chassis Type: F103W
Construction Type: Assembly Kit
Differential Type: Ball Differential
Drive Type: 2WD
Motor: 540 Brushed type
Scale: 1/10
Shock Damper: Mono Shock
Suspension: Mono Shock Rear/Independent coil spring front
Terrain Use: On-Road
Specs

Product Specifications

Part NumberTAM47374
Scale1/10
Drivetrain2WD
Kit TypeUnassembled Kit
Adjustable Gear RatioYes
BearingsYes
Body MaterialPolycarbonate & ABS Plastic
Body StickersVinyl
Chassis MaterialFRP
Chassis TypeF103W
Construction TypeAssembly Kit
Differential TypeBall Differential
Drive Type2WD
Motor540 Brushed type
Scale1/10
Shock DamperMono Shock
SuspensionMono Shock Rear/Independent coil spring front
Terrain UseOn-Road
