Tamiya 1/24 Lunch Box Mini Kit (SW-01) Assembly Kit


LOADING IMAGES
Tamiya (TAM) Logo Tamiya 1/24 Lunch Box Mini Kit (SW-01) Assembly Kit
$93.60

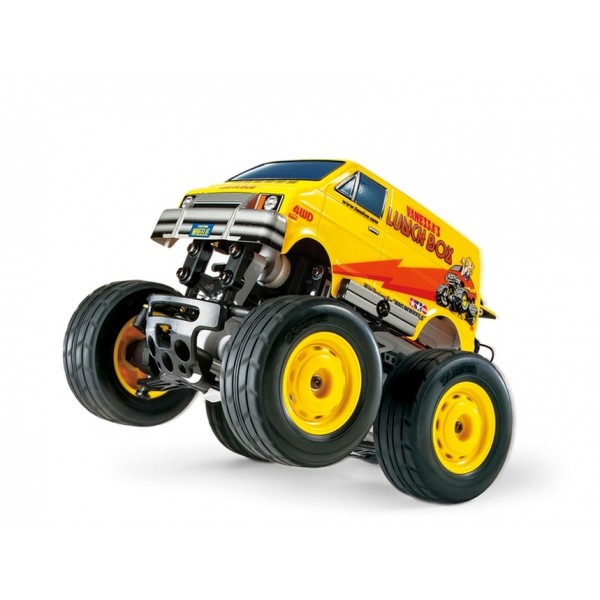

This is the Tamiya 1/24 Lunch Box Mini Kit (SW-01) Assembly Kit. The legendary Lunch Box in mini size!

Availability: Please call for availability
We might still have one laying around..

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Overview

This is a compact, maneuverable, and above all super-fun addition to the world of Tamiya wheelie models! It's a familiar face, too, as the legendary Tamiya Lunch Box has been shrunk down to 1/24 scale.

The classic shrunken Lunch Box body sits on top of the 4WD SW-01 chassis. It is capable of 4-wheel steering using separately sold Upper Arm Connectors that not only allows you to steer with all four wheels on the ground, but it also allows the vehicle to steer while doing wheelies!

Requires:

  • 2-Channel Radio
  • standard size servo
  • 7.2-7.4 volt battery pack & compatible charger
  • Electronic Speed Control

features

  • The steering uses 1-piece upper arms for a tight turning circle and the body leans to help suppress tumbles. It can be converted into a 4-wheel steering setup with separately sold Item 54898 SW-01 Upper Arm Connectors.
  • The body is attached to the body mounts using magnets for quick attachment.
  • The Type 370 motor is located right in the center of the SW-01 chassis, in a gear-driven 4WD setup with a gear ratio of 21.875-to-1.
  • The famous Lunch Box body is molded in lightweight and durable polycarbonate and is pre-painted.
  • The body leans in the direction in which the model steers, achieving remarkably tight turning circles.
  • Responsive 4WD.
  • Strut style suspension.
  • Can be used with standard size servos and R/C equipment despite its compact nature.
  • Big, tread patterned tires give superb traction and add to the overall cartoonish look of the Lunchbox Mini.
  • Dish type wheels.
  • Compatible with Tamiya LF Battery TAMLF1100-6.6V Racing Pack (M-Size) as a power source.
    • Compatible with: item TAM51610 RC T301 Battery Case for use with 4 AA batteries if desired.
    • Aftermarket battery note: Battery pack size must be under 66x36x15mm in size.
  • 370-type size motor included.

Specs

Construction Type: Assembly Kit
Scale: 1/24
Length: 190mm
Width: 146mm
Height: 140mm
Terrain: Use On-Road
Adjustable Gear Ratio: Fixed
Bearings: Plastic bushing
Body Material: Polycarbonate
Chassis Material: ABS Plastic
Chassis Type: SW-01
Differential Type: Gear
Drive Type: 4WD
Motor: 130-Size
Shock Damper: Friction type
Special Feature 1: Comes with painted body
Body Stickers: Included
Suspension: Fully Independent Double Wishbone
Specs

Product Specifications

Part NumberTAM57409
Scale1/24
Drivetrain4WD
Kit TypeUnassembled Kit
Construction TypeAssembly Kit
Scale1/24
Length190mm
Width146mm
Height140mm
TerrainUse On-Road
Adjustable Gear RatioFixed
BearingsPlastic bushing
Body MaterialPolycarbonate
Chassis MaterialABS Plastic
Chassis TypeSW-01
Differential TypeGear
Drive Type4WD
Motor130-Size
Shock DamperFriction type
Special Feature 1Comes with painted body
Body StickersIncluded
SuspensionFully Independent Double Wishbone
