- Overview
Includes:

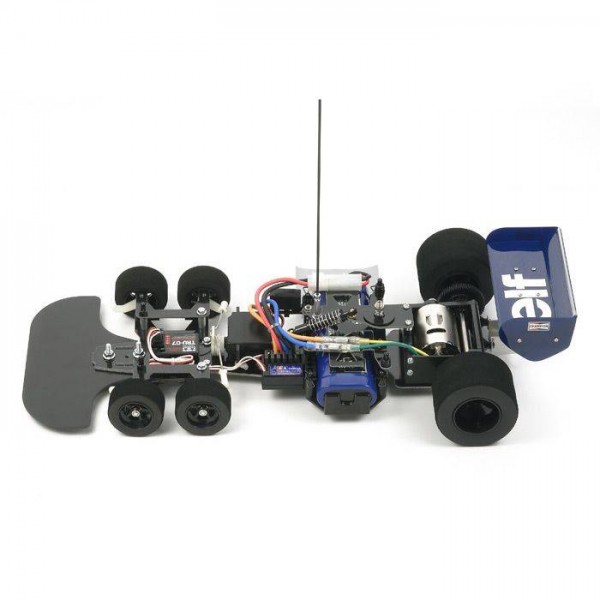

- Tyrrell P34 Six Wheel Race Car Kit
- four Front Wheels
- Sponge Tires
- Decals
- Motor
- Clear Body
- Instructions
Requires:
- Radio: 2 channel with high speed steering servo
- ESC: For brushed motors
- Battery: 6-cell 7.2V stick
- Battery Charger: To match selected battery
- Building and track equipment
features
- Chassis: Lightweight FRP construction, semi double deck configuratio 0.06" (1.5mm) thick upper deck, 0.10" (2.5mm) thick lower deck.
- Drive: Direct 2WD.
- Motor: 540-J brushed.
- Differential: Ball type.
- Suspension: Front, independent kingpin coil spring, Rear, rigi with FRP T-bar, friction plate and coil spring friction shock.
- Body: Polycarbonate with inner tray, driver torso with white plasti driver figure.
- Bumper: Front plastic blade style.
- Spur Gear: 63T plastic.
- Pinion Gear: 14T metal.
- Tires: High-grip sponge, Front, 1.6" (41.5mm) diameter 0.83" (21mm wide, Rear, 2.4" (61mm) diameter, 1.7" (44mm) wide.
- Wheels: Black plastic, Front 1.1" (27mm) diameter, 0.85" (21.8mm wide, Rear 1.4" (36mm) diameter, 1.8" (45mm) wide.
VehicleSpecs
Length: 17" (430mm)
Width: 8" (204mm)
Height: 4.2" (108mm)
Weight: 1.87lbs (815g)
Body
Length: 13.9" (354mm)
Width: 6.2" (158mm)
Height: 3.4" (86mm)- Specs
Product Specifications
Part Number TAM84263 Scale 1/10 Drivetrain 2WD Kit Type Unassembled Kit Length 13.9" (354mm) Width 6.2" (158mm) Height 3.4" (86mm) Weight 1.87lbs (815g) - Reviews
