- Overview
Overview

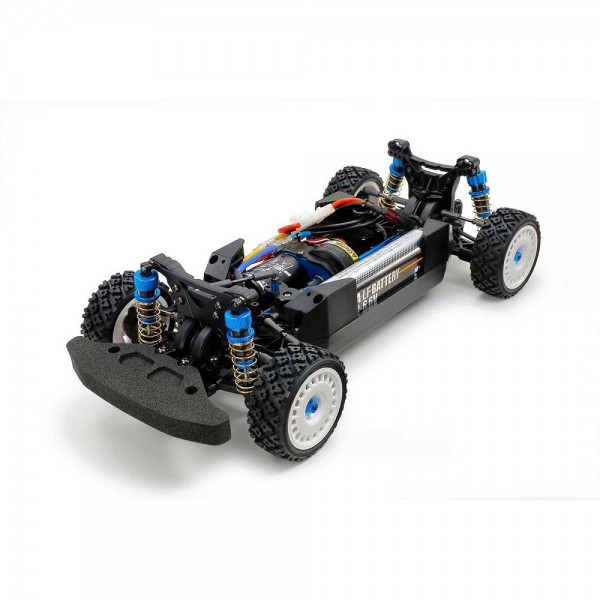

The XV-01 Pro incorporated a 4WD belt drive system with clever positioning of the RC electronic components with debris protection compartments. The all-new XV-02 Pro takes its 4WD drivetrain into a different direction by using a shaft-driven system with front mid-ship motor placement that incorporates equal length front and rear propeller shafts!
Includes:
- (1) XV-02 PRO Chassis Kit
Requires:
- (1) 2-Channel Radio System
- (1) Motor
- (1) ESC
- (1) Standard Servo
- (1) 7.4v Battery
- (1) Charger
- (1) Rally Body
- Polycarbonate Paint for Body
features
- Use 39T gear (w/15T gear) on the front and 40T gear (w/15T gear) on the rear for drive balance bias to front and vice-versa for drive balance bias to rear.
- Features newly-designed parts such as: gears, bathtub frame chassis, chassis cover, caster blocks featuring 6-degree caster angle (XV-01 chassis - 10-degree caster angle), and bumpers with skid angles to reduce surface contact.
- The motor mount, propeller shafts, input and center shafts, and urethane bumpers have new metal parts.
- Features a longitudinal battery pack position in the center-left for optimum balance.
- Comes with two 39T differential gears and one 40T differential gear for adjustment of front and rear drive balance. (Over-Drive and Under-Drive Adjustment)
- Long aluminum dampers are employed at front and rear.
- A polycarbonate chassis cover with wheel well liners help prevent dirt and dust from getting inside.
- Suspension arms and front uprights are based upon the XV-01 chassis kit.
- Comes with rally block tires and wheels.
Ball Bearings: Includes full ball bearingsSpecs
Battery: Sold Separately
Charger: Sold Separately
Chassis: Bathtub Chassis, FRP Fiberglass Reinforced Plastic
Completion Level: Kit
Differential: oil-filled gear differential for both front and rear
Drive Type: Forward/Brake/Reverse
Drivetrain: 4WD
Gear Ratio: 9.58: 1
Power Type: Electric
Length: 14.4882" (368 mm)
Width: 7.08661" (180 mm)
Radio: Sold Separately
Receiver: Sold Separately
Scale: 1/10
Servos: Sold Separately
Shock Type: Aluminum cylinder long oil damper
Speed Control: Sold Separately
Suspension: 4-wheel double wishbone
Vehicle Size: Standard
Vehicle Type: Rally Car
Wheelbase: 10.1181" (257 mm)- Specs
Product Specifications
Part Number TAM58707 Scale 1/10 Drivetrain 4WD Kit Type Unassembled Kit Ball Bearings Includes full ball bearings Battery Sold Separately Charger Sold Separately Chassis Bathtub Chassis, FRP Fiberglass Reinforced Plastic Completion Level Kit Differential oil-filled gear differential for both front and rear Drive Type Forward/Brake/Reverse Drivetrain 4WD Gear Ratio 9.58: 1 Power Type Electric Length 14.4882" (368 mm) Width 7.08661" (180 mm) Radio Sold Separately Receiver Sold Separately Scale 1/10 Servos Sold Separately Shock Type Aluminum cylinder long oil damper Speed Control Sold Separately Suspension 4-wheel double wishbone Vehicle Size Standard Vehicle Type Rally Car Wheelbase 10.1181" (257 mm) - Reviews
