Tamiya 1/10 M-08 Concept Chassis Kit


LOADING IMAGES
Tamiya (TAM) Logo Tamiya 1/10 M-08 Concept Chassis Kit
$187.38
The Tamiya M-08 Concept Chassis Assembly Kit. A 1/10 scale RWD chassis with great traction and easy maintenance

Availability: Please call for availability
We might still have one laying around..

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Overview

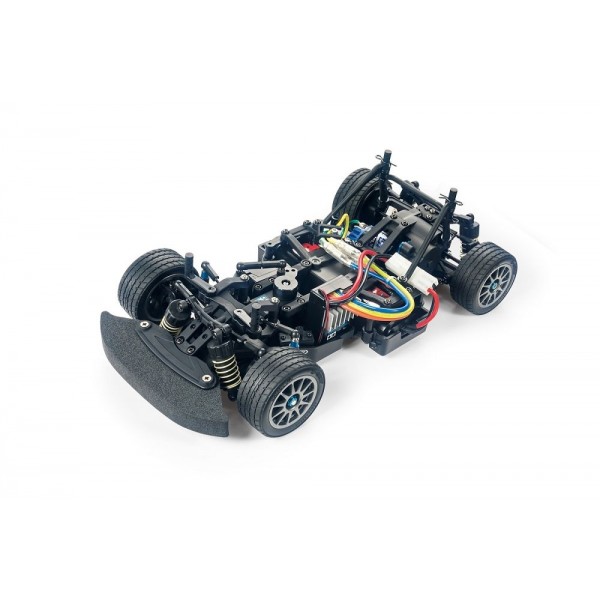

This TAMIYA high-performance rear-wheel drive R/C chassis assembly kit is constructed around a rigid monocoque with the main frame split into front and rear sections. It offers superior rear high traction drive characteristics and fuss-free maintenance of parts such as the easy-access differential. C.V.A. (Constant Volume Adjustable) oil shock-damped 4-wheel double wishbone suspension features dedicated long arms and steering linkage components for a range of setup options. A silky-smooth drivetrain utilizes full ball bearings, oil-filled gear differential unit and universal drive shafts. It can be assembled with a 210mm (S), 225mm (M) or 239mm (L) wheelbase, making it compatible with appropriately-sized existing Tamiya M-chassis body parts sets.

Requires:

  • 2-Channel Radio
  • servo
  • ESC
  • motor
  • 7.2-7.4volt battery pack & compatible charger
  • body set.

features

  • 1/10 scale R/C model assembly kit.
  • The chassis is split into front (suspension and servo) and rear (motor and battery) sections. It can be assembled into three different wheelbases, S (210mm), M (225mm) or L (239mm).
  • Rear-midship motor powers rear wheels via a differential in the Mid-Rear setup.
  • Oil-filled differential gear used from the M-07.
  • Features proven M-07 Concept designs: suspension arms, uprights, suspension mounts and aluminum parts.
  • Includes CVA oil dampers, universal drive shafts, full ball bearings and hi-torque servo saver.
  • Comes with new front suspension mounts (0 degrees) and hub carriers (2 degrees) for a total caster angle of 2 degrees.
  • Compatible with M-06 Chassis bodies.
  • Compatible with M-07 Concept Hop-Up Option parts such as Aluminum Rear Suspension Mount (Skid Angle Adjustment) ( TAM54787 ), Aluminum Rear Uprights ( TAM54781 ) and Low-Friction King Pin Pipes (TAM54813).

Specs

Adjustable Gear Ratio: Yes
Bearings: Includes full ball bearings
Body Material: Not Included
Chassis Material: FRP Fiberglass Reinforced Plastic
Chassis Type: M-08
Construction Type: Assembly Kit
Differential Type: Gear-Type (Oil-Filled)
Drive Type: 2WD
Scale: 1/10
Shock Damper: CVA Oil Filled
Suspension: 4-wheel fully independent double wishbone
Terrain Use: On-Road
Specs

Product Specifications

Part NumberTAM58669
Scale1/10
Drivetrain2WD
Kit TypeUnassembled Kit
Adjustable Gear RatioYes
BearingsIncludes full ball bearings
Body MaterialNot Included
Chassis MaterialFRP Fiberglass Reinforced Plastic
Chassis TypeM-08
Construction TypeAssembly Kit
Differential TypeGear-Type (Oil-Filled)
Drive Type2WD
Scale1/10
Shock DamperCVA Oil Filled
Suspension4-wheel fully independent double wishbone
Terrain UseOn-Road
