Overview

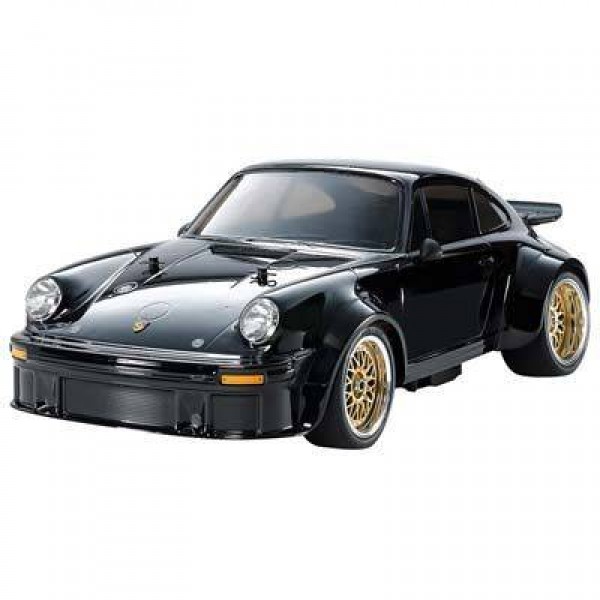

The Porsche 934 dominated its racing class in the late 1970s, and holds a special place in Tamiya history as the subject of our first R/C model kit. In late 1977, we then released a limited edition in black. This R/C model assembly kit is inspired by that piece of Tamiya history. The accurate clear polycarbonate body has recreations of the distinctive flared front/rear fenders and large front spoiler. Rear wing, engine hood and side mirrors are recreated using separate parts, while metal plated light cases and LEDs offer a realistic lit-up model.
Includes:
- TT-02 Porsche 934 Jagermeister
- Brushed Motor
- Body
- Tires/Wheels
- Foam Inserts
- Decals
- Shock Oil
- Instruction Manual
- LED
- Head and Tail Lights
Requires:
- 2-Channel R/C Unit with ESC
- Battery Pack & Charger
- R6/AA/UM3 batteries for transmitter
features
- TA-02 SW (short wheelbase) FRP double-deck chassis.
- Four-wheel shaft drive with dogbones.
- Torque-Tuned 540 brushed motor.
- Aluminum motor mount.
- Polycarbonate body.
- Plastic bodied oil-filled CVAs.
- Fully independent double wishbone suspension.
- Bellcrank steering.
- FRP rear damper stay.
- CC-01 assembly universal shafts.
- Ball diff cup joint for universal shafts.
- Hard propeller shaft.
- Rear ball differential.
- 21-tooth metal pinion gear.
- 74-tooth plastic spur gear.
- 2.5" (64 mm) diameter rubber slicks with foam inserts. Front width: 1.02" (26 mm); Rear width: 1.2" (31 mm).
- 1.9' (48 mm) diameter two-piece plastic wheels with chrome and copper finish. Front width: 1.02" (26 mm); Rear width: 1.9" (48 mm).
- Non-adjustable camber.
- Adjustable front caster.
Vehicle;Specs
Length: 17.1" (435mm)
Width: 7.9" (202mm)
Height: 5.1" (130mm)
Wheelbase: 9.3" (236mm)
Body;
Length: 17" (432mm)
Width: 6.4" (164mm) narrowest point
Width: 7.9" (200mm) at rear wheels, widest point
Height: 3.8" (98mm)- Specs
Product Specifications
Part Number TAM47362 Scale 1/10 Drivetrain 4WD Kit Type Unassembled Kit Length 17" (432mm) Width 7.9" (200mm) at rear wheels, widest point Height 3.8" (98mm) Wheelbase 9.3" (236mm) - Reviews
