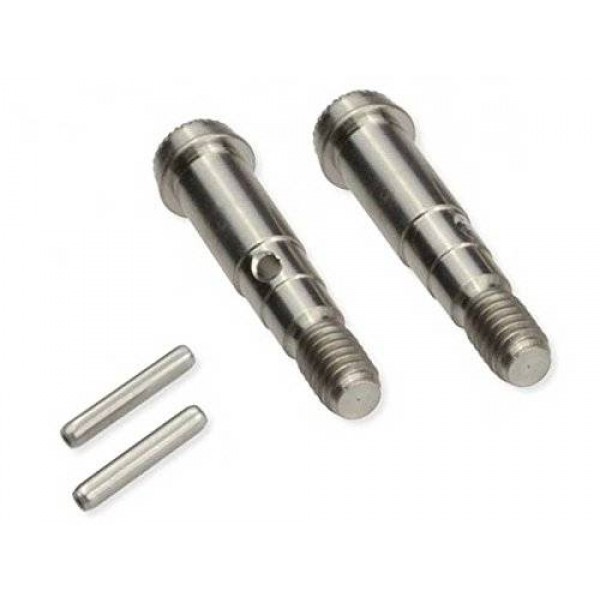

JConcepts Titanium Knurl Tip Front Axle Set (Mid-Motor T5M)

One of the best upgrades you can make to any R/C vehicle is to reduce weight. A critical point of the axle weight revolves around the front axle itself along with surrounding geometry, hexes and pins. Within the steering block the space is very tight and especially between the 2 front bearings where the front axles rests. The cleverly designed JConcepts axle is quite simple, straight-forward and eliminates ~25% weight over a stock steel axle.

The JConcepts front axle design is based around high-quality Titanium construction, and a knurled axle tip for finger control and access. Finger control gives the mechanic a grippy place to rest a finger so the front tire doesn’t rotate easily during changes making the process quicker and with less frustration. The design also eliminates screws and other items which are hard to inspect for issues which limit performance and add additional weight. The light-weight, free spinning design includes axle roll-pins to allow easy assembly of a necessary but (not included) clamping hex adapter.

Features:

• JConcepts design and function
• Knurl tip for finger control
• High-quality titanium construction
• Design eliminates frustrating components
• Includes roll-pins
• Stock steel front axle with screw: 6.0g
• JConcepts Titanium front axle with hex adapter: 4.5g

Assembly:

Assembly is built from the inside out. Slide the axle through bearings and install included roll-pin and center on the axle. Complete by installing (not included) JCO2449-1 (blue) or JCO2449-2 (black) or ASC71014 hex adapter. For added security use (available separately) JCO2341-1 (blue) or JCO2341-2 (black) JConcepts large flange serrated wheel nuts.
