- Overview
Overview

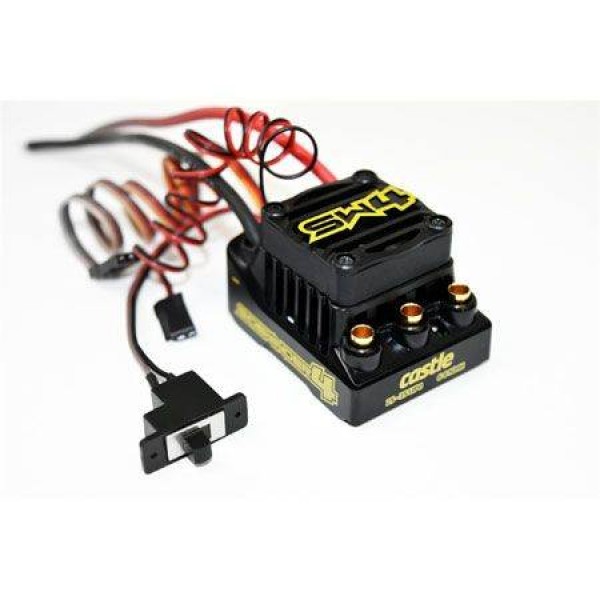

While the all new SIDEWINDER 4™ builds upon Castle’s most popular platform, the SIDEWINDER 1/10 SCALE SERIES, it is the first of its kind to run Castle’s newest technology, CRYO-DRIVE™. CRYO-DRIVE™ combines technology from cutting-edge hardware and software advancements to increase thermal performance. COOLER TEMPS mean LONGER RUNS and MORE POWER in your SIDEWINDER 4 setup.
The SIDEWINDER 4 is a versatile ESC and is accepted in a wide variety of applications. Whether throwing dirt, ripping through a corner or steadily dominating the trails, we’ve got you covered!Notes:
*Although Sidewinder 4 is waterproof, it is not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC with clean water after exposure to corrosives or dirt. While the controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.
features
- 2s - 3s LiPo; 6 - 8 cell NiMH use in vehicles up 6.5lbs with battery, ready-to-run.
- Sensorless brushless and/or brushed motor operation.
- Waterproof design ESC and splash resistant 30MM fan*
- 5.0 volts fixed, 2 amps Peak BEC
- Audible alerts for error conditions
- Enhanced drag brake functionality
- Smoother sensorless startups
- Convenient transmitter programming for six common adjustable settings
- Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (sold separately) or via Field Link Card (sold separately) or via the Castle Link App and a B-LINK Bluetooth Adapter (sold separately).
- Telemetry Link compatible for Futaba® S.BUS2 (sold separately)
Input Voltage Range: 2s - 3s LiPo; 6 - 8 cell NiMHSpecs
BEC Specifications: 5.0 volts fixed, 2 amps.
Operating Environment: Waterproof* design allows for use in nearly any environment
Brake: Proportional
Reversible: Yes, but may be disabled for racing.
On/Off Switch: Yes
Cooling Fan: 30mm fan included
ESC Size: L: 2.08" (52.92mm)
W: 1.50" (38.05mm)
H: 1.28" (32.56mm)
ESC Weight (w/wires): 2.26 oz. (64 g)
Connectors: 4mm female bullets for motor connection.- Specs
Product Specifications
Part Number CSE010-0164-00 Input Voltage Range 2s - 3s LiPo; 6 - 8 cell NiMH BEC Specifications 5.0 volts fixed, 2 amps. Operating Environment Waterproof* design allows for use in nearly any environment Brake Proportional Reversible Yes, but may be disabled for racing. On/Off Switch Yes Cooling Fan 30mm fan included ESC Size L: 2.08" (52.92mm) W 1.50" (38.05mm) H 1.28" (32.56mm) ESC Weight (w/wires) 2.26 oz. (64 g) Connectors 4mm female bullets for motor connection. - Reviews
