Overview

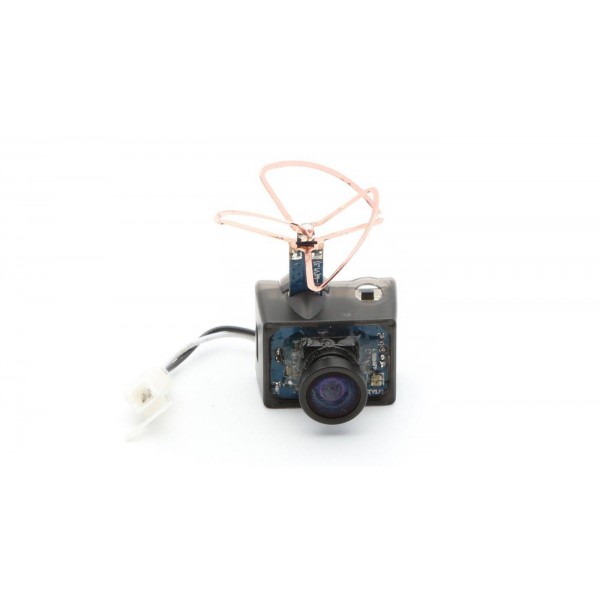

This amazing bit of Spektrum™ technology is perfect for ultra micro aircraft. It combines an FPV camera, transmitter and antenna into a single unit no bigger than a thimble. It’s compatible with Fat Shark and other popular FPV headsets equipped with analog 5.8GHz receivers.
Installation is easy and can be done in seconds. No soldering or special skills are required. You simply attach it to your model and plug in a 1S battery (sold separately). A Y-harness connector is included if you want to eliminate the weight of a separate battery and power the camera with the same 1S flight battery that powers the aircraft.features
- Works with 5.8GHz Fat Shark Head Sets
- Powered Separately or by Aircraft Battery
- No 2.4GHz RC Interference
- No FCC License Required
- Installs in Seconds
- Signal Range Suitable for Ultra Micro RC Aircraft
Input power: 3.3–4.2V (1S supply)Specs
Power consumption: 300mA @ 3.7V (1S)
Imager: 1/6” VGA CMOS
Camera Lens: 0.95mm IR cut
Field of view: 115°diagonal (90°horizontal)
Resolution: 330 lines
Operating temp: -10º to 60ºC
Square: 13.2 X 17.6 X 9mm
Lens dimensions: 9mm X 10mm diameter
Antenna dimensions: 20mm X 25mm diameter
Video output: Analog NTSC video out
Frequency: 5.8GHz (7 channels available, Fat Shark frequency band)
Weight: 4.5 g (with case)- Specs
Product Specifications
Part Number SPMVA1100 Input power 3.3–4.2V (1S supply) Power consumption 300mA @ 3.7V (1S) Imager 1/6” VGA CMOS Camera Lens 0.95mm IR cut Field of view 115°diagonal (90°horizontal) Resolution 330 lines Operating temp -10º to 60ºC Square 13.2 X 17.6 X 9mm Lens dimensions 9mm X 10mm diameter Antenna dimensions 20mm X 25mm diameter Video output Analog NTSC video out Frequency 5.8GHz (7 channels available, Fat Shark frequency band) Weight 4.5 g (with case) - Reviews
