Spektrum Smart S120 USB-C Charger, 1x20W


LOADING IMAGES
Spektrum (SPM) Logo Spektrum Smart S120 USB-C Charger, 1x20W
$24.99
Spektrum part #SPMXC1020, Spektrum Smart S120 USB-C Charger, 1x20W. For Spektrum SMART batteries

Availability: In stock*

Only 2 left

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Overview

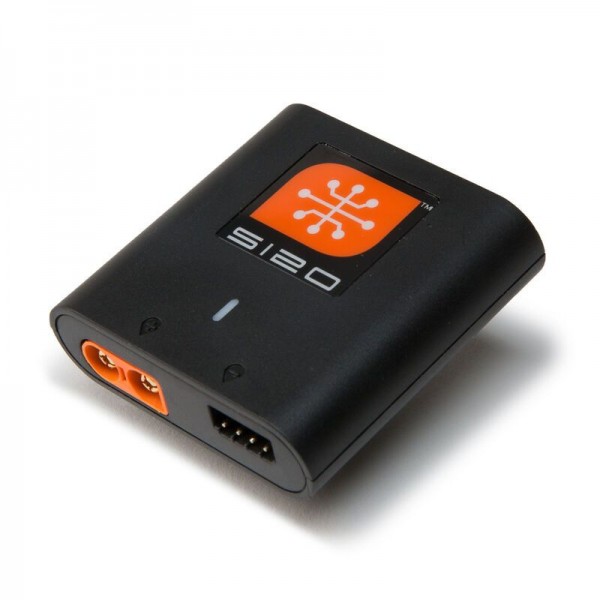

The Spektrumâ„¢ S120 USB-C Smart Charger features Spektrum Smart Charging technology in a small and simple to use platform. This 20W charger easily charges compatible Spektrum Smart batteries conveniently from almost any USB power source. When a Spektrum Smart battery is connected, the S120 immediately detects the battery information and automatically begins to charge. Spektrum Smart charging is designed to be safe, intuitive and convenient so you can simply look forward to putting your batteries back to action!

Charging is easy with the Spektrum S120 USB-C Smart Charger. Simply use the included USB cable to supply power to the S120 Smart Charger from a USB power source (not included). Plug in your Spektrum Smart battery (Lipo versions require the balance lead to be connected as well as the main lead) and the charger will automatically start charging. Monitor your charging status via a blinking purple or yellow LED. Once your charging is complete the LED will glow green.

Includes:

  • (1) S120 USB-C Smart Charger
  • (1) USB-C to USB Cable
  • (1) Product Manual

Requires:

  • (1) USB Power Source

Notes:


Please note that the Spektrum S120 Charger will ONLY CHARGE 2-3 cell SPEKTRUM SMART LiPo/LiFe/LiHV and 6-7 cell SMART NiMh Batteries

features

  • Easily charge compatible smart batteries from convenient USB power (power supply not included)
  • Automatically detects smart battery information and begins charging when connected
  • Compatible with 2-3 cell Smart LiPo Batteries

Specs

Application: Only compatible with Spektrum SMART batteries
Battery Balance Connector: JST_XH
Charge Protection Circuitry: Yes
Input Voltage: 5-12VDC USB charge port, USB type C cable included, power supply required
Maximum Charge Rate: 4.35V per cell x3 for a 3 cell LiHV, 2A
Number of Cells: 2-3
Output: Up to 2A (depending on Power Supply and Battery)
Output Connector: IC3
Product Height: 0.55" (14mm)
Product Length: 2" (51mm)
Product Width: 2" (51mm)
Programmable: No
Reverse Polarity Protection: Yes
Selectable Charge Rate: No
Technology: Smart
Thermal Protection: Yes

Product Videos

Specs

Product Specifications

Part NumberSPMXC1020
ApplicationOnly compatible with Spektrum SMART batteries
Battery Balance ConnectorJST_XH
Charge Protection CircuitryYes
Input Voltage5-12VDC USB charge port, USB type C cable included, power supply required
Maximum Charge Rate4.35V per cell x3 for a 3 cell LiHV, 2A
Number of Cells2-3
OutputUp to 2A (depending on Power Supply and Battery)
Output ConnectorIC3
Product Height0.55" (14mm)
Product Length2" (51mm)
Product Width2" (51mm)
ProgrammableNo
Reverse Polarity ProtectionYes
Selectable Charge RateNo
TechnologySmart
Thermal ProtectionYes
