Overview
Spektrum Smart G2 Battery:
Drivers and pilots enjoy even more Smart advantages when using Spektrum™ Smart G2 50C LiPo batteries to power their vehicles. "Generation 2" features make these LiPo packs — featuring a 50C continuous discharge rating for high performance and longevity — even simpler and safer to use together with your Smart charger.
For example, Spektrum™ Smart G2 technology makes it much easier to balance charge your LiPo batteries. Balancing information travels through the unique data wire of each Smart G2 battery's innovative IC3® or IC5® connector. As a result, only a single connection is needed — no separate balance lead is required.
Smart G2 batteries come from the factory programmed to discharge automatically to a safe storage voltage of 3.90V after 72 hours of inactivity. The benefits include longer battery life, better performance over the life of the pack, and the peace of mind that comes from knowing your Smart battery is maintenance-free. G2 batteries also offer a storage discharge rate that's three times faster than the previous G1 Smart batteries. Learn more about Smart Technology here: www.spektrumsmart.com
Spektrum Smart Charger:
With the compact S150 AC Mini Smart Charger, modelers of all experience levels can enjoy the charging advantages of innovative Spektrum™ Smart technology. This 50 watt charger brings advanced Smart charging capabilities and features to an affordable platform that features an easy-to-use, one-button interface.
When used with Spektrum Smart batteries with an IC3™ or IC5™ connector, the S150 uploads charging data from each battery's integrated memory chip. That pack-specific data helps you evaluate battery health and makes charging a snap — because the S150 can read and make the correct chemistry setting automatically. The S150 AC Mini Smart Charger is compatible with LiPo, Lilon, LiHV, and NiMH battery types.Includes:

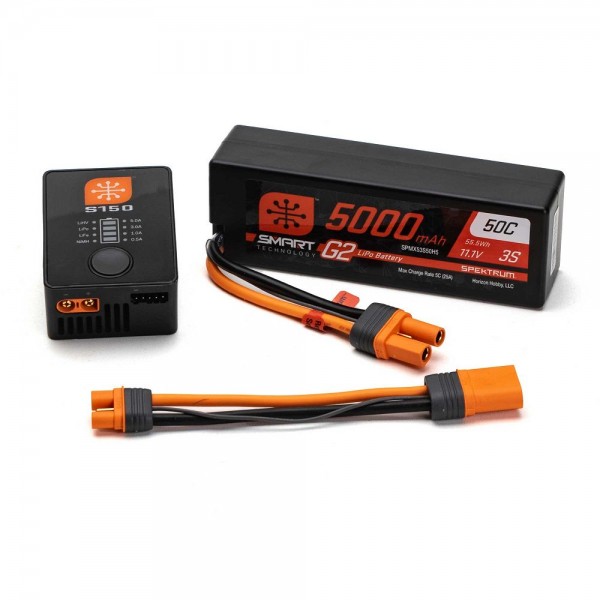

- (1) Spektrum 3S 5000mAh Smart G2 Battery
- (1) Spektrum S150 Smart Charger
- (1) Spektrum Adapter - IC3 Battery to IC5 Device
features
- Battery:
- Powerful 50C continuous discharge rating to deliver high performance and longevity
- Balance charge through the IC5 connector data wire — with only one connection, no balance lead required
- Faster Auto Discharge at up to 1.5A to safe storage voltage for long battery life and improved performance
- Integrated microchip stores unique parameters for each battery
- IC5 connectors may be connected to a device with an EC5 connector
- Charger:
- Recognizes unique Smart battery data for safe, easy charging
- Charges 2-4S LiPo, Lilon, LiHV, LiFe batteries 300mAh and above
- Also charges 2-12 cell NiMH batteries
- Can also be used to charge batteries without Smart technology
- 50 watts of charging power, up to 5 amps of charge current
- One-button interface and simple to understand charging indicator
- Adaptable for AC power input (includes AC to 20V DC power supply)
- Quiet internal cooling fan maintains a safe, efficient operating temperature
- Accepts future Smart technology updates
- Battery -Specs
Connector Type: IC3
Battery Balance Connector: JST-XH
Capacity: 5000mAh
Voltage: 11.1V
Battery Type: LiPo (3.7V per cell)
Technology: Smart
Charge Rate: 5A - 1C
Cell Configuration: Stick
Dimensions: 5.45x1.83x1.37in (138x46x35mm) (LxWxH)
Hard Case: Yes
Wire Gauge: 12AWG
- Charger -
Input Voltage: 100-240V AC
Number of Cells: 2-4S LiPo, LiFe LiHV, LiFe, 2-12 cell NiMH
Output: 5A
Normal/Standard Charge Current: 1.0 - 5.0A
Output Connector: IC3 (compatible with EC3)
Reverse Polarity Protection: Yes
Amp Meter: No
Discharge: Yes
Safety Timer: Yes
Selectable Charge Rate: Yes
Software Updates: Yes
Low Input Voltage Protection: Yes
Maximum Charge Rate: 17.4V, 5A, 50W
Battery Temperature Monitoring: No
Over Current Protection: Yes
Peak Detection: Yes
Thermal Protection: Yes
Integrated Balancing: Yes - Internal Balancer & Internal Adapter
Programmable: No
Short Circuit Protection: Yes
Application: Battery Charger for Electric Powered RC Vehicles and Aircraft
Product Height: 1.12" (28 mm)
Product Width: 1.9" (48 mm)
Product Length: 2.5" (64 mm)
Product Weight: 2.2oz (63g)
Voltage Meter: No- Specs
Product Specifications
Part Number SPMXG2PS3 Battery Chemistry LiPo Battery Voltage 11.1V (3-cell) Capacity mAh 5000 Connector Type IC3 Battery Balance Connector JST-XH Capacity 5000mAh Voltage 11.1V Battery Type LiPo (3.7V per cell) Technology Smart Charge Rate 5A - 1C Cell Configuration Stick Dimensions 5.45x1.83x1.37in (138x46x35mm) (LxWxH) Hard Case Yes Wire Gauge 12AWG Input Voltage 100-240V AC Number of Cells 2-4S LiPo, LiFe LiHV, LiFe, 2-12 cell NiMH Output 5A Normal/Standard Charge Current 1.0 - 5.0A Output Connector IC3 (compatible with EC3) Reverse Polarity Protection Yes Amp Meter No Discharge Yes Safety Timer Yes Selectable Charge Rate Yes Software Updates Yes Low Input Voltage Protection Yes Maximum Charge Rate 17.4V, 5A, 50W Battery Temperature Monitoring No Over Current Protection Yes Peak Detection Yes Thermal Protection Yes Integrated Balancing Yes - Internal Balancer & Internal Adapter Programmable No Short Circuit Protection Yes Application Battery Charger for Electric Powered RC Vehicles and Aircraft Product Height 1.12" (28 mm) Product Width 1.9" (48 mm) Product Length 2.5" (64 mm) Product Weight 2.2oz (63g) Voltage Meter No - Reviews
