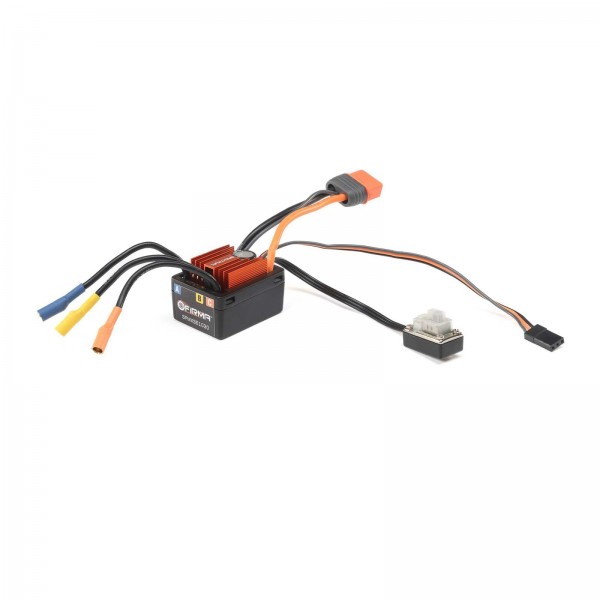

Firma 30A Brushless Smart ESC: Minis

Feature-packed Spektrum Firma Smart ESCs deliver power and intelligence all-in-one, with no additional modules or links required.

Like every component in the Spektrum Smart ecosystem, Firma Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics, creating the best-performing RC system for your vehicle.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever before without installing extra components that work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage, and capacity.

Firma ESCs gather the data and send it to your transmitter in real time instead of storing it for an after-run study. You can adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

• Smart all-in-one telemetry
• Fast, powerful 32-bit ARM M4 processor
• Waterproof
• Multiple options for easy programming:
• Button programming
• Smart ESC Programming Box
• SmartLink USB Updating and Programmer application
• Multi-point protection:
• Over-current protection
• Automatic LiPo low-voltage cutoff
• Thermal protection
• Failsafe protection
• Developed and designed by Spektrum engineers in partnership with the industry's leading ESC manufacturer
• Compact for easy installation in most applications
• Ready to install — no soldering required
• Rugged plastic case with mounting tabs
• Aluminum heat sink for high efficiency
• Cooling fan
• Adjustable high-power BEC
• Firmware updatable through the Smart ESC Programming Box
• High heat-resistant IC connectors, backward compatible with EC connectors
• Limited 1-year warranty

Amperage: 30A
BEC: Yes
BEC Continous Current: 3A
BEC Type: Linear mode
BEC Voltage: 6V / 7.4V
Brakes: Yes
Connector Type: IC3
ESC Type: Brushless
Forward: Yes
Input Voltage: 2S - 3S LiPo | 5C - 9C NiMH
Low-Voltage Cutoff Programmable: Yes
Maximum Burst Current: 100A
Maximum Continuous Current: 30A
Motor Output Lead: 3.5mm Female Bullet
Motor Type: Brushless
Overload Protection: Yes
Product Height: 0.63" (16 mm)
Product Length: 1.42" (36 mm)
Product Weight: 38g
Product Width: 1.1" (28 mm)
Programmable: Yes
Reverse: Yes
Technology: Smart
Water-Resistant: Yes
WATERPROOF:
The all-weather, waterproof design of Spektrum Firma Smart ESCs allows them to perform in nearly any terrain under almost any conditions. Firma ESCs keep you going through dust, gravel, snow, and water.

EC3/EC5 BACKWARDS COMPATIBLE:
Firma ESCs feature IC series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC3 or IC5 connector equipped Spektrum Smart battery, the ESC can receive and transmit battery telemetry data. EC3 and EC5 are also compatible with Firma ESCs for basic operation and ESC telemetry.

ONE-WIRE TELEMETRY:
No need to connect multiple wires, sensors, modules, and links. With Firma ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real-time, including RPM, voltage, temperature, balance, capacity, and speed.*

*See the compatibility chart for more information.:

SMART TECHNOLOGY BATTERY DATA:
When used with a Spektrum Smart LiPo battery, your Firma ESC provides battery telemetry that's automatically transmitted to your compatible Spektrum radio in real-time. On your transmitter screen, you'll be presented with helpful information such as the number of cycles, battery percentage, individual cell voltage, and more!

MULTIPLE PROGRAMMING OPTIONS:
Multiple programming options are available. Button programming can be used with nothing more needed. Using the Smart Firma ESC Programming Box, you can easily change settings at the track to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available.

FAST, POWERFUL M4 PROCESSOR:
The Firma ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output.
