OverviewPro-Level Features Without the Pro-Level Price

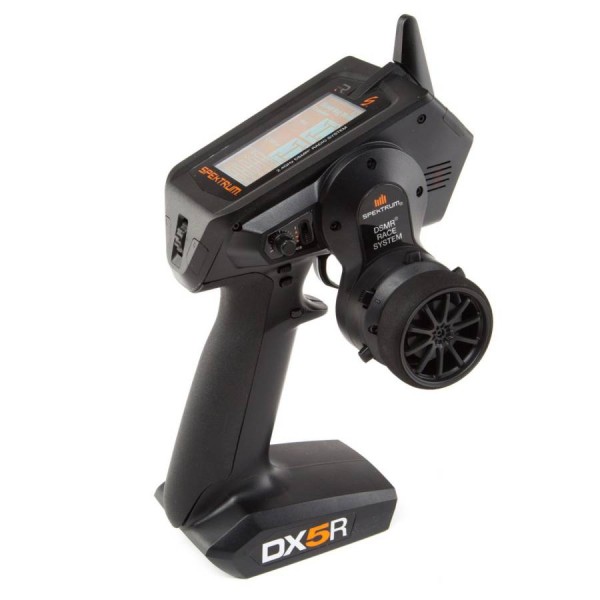

The DX5R gives bashers, boaters and racers an impressive list of pro-class features at a remarkably affordable price.
Superb Ergonomics Inspired by the DX6R
Optimized weight distribution and all kinds of adjustments make it easy to thoroughly adapt the DX5R’s ergonomics to your driving style. The sense of balance and comfort they provide perfectly complements the precision of DSMR technology.
Ergonomic features include:
• Adjustable trigger and steering tension
• Adjustable trigger position (fore-to-aft and side-to-side)
• Multiple wheel drop-down options
• 3 Grip sizes available (1 included)
• 10˚ and 15˚ steering adapters available*
• Small steering wheel available*
• 36˚ steering cam available*
• Smooth, dual-ball bearing precision
Intuitive SimpleScroll™ Progamming Interface
Sophisticated programming isn't worth much if it's a pain to use. The DX5R’s SimpleScroll programming interface makes navigating menus and changing settings as simple as 'scroll and click'. It's so easy to use, most users can complete complex programming tasks without ever having to look at the manual.
Advanced Programming Features
The DX5R comes with an impressive list of programming features, some of which include:
• Up to 5 drive modes per model
• Programming for compatible AVC® receivers
• Programmable mixes
• ABS and 4-wheel steering
• Dual rates and expo
The built-in telemetry feature can give you real-time information on things like your vehicle's battery voltage, signal quality, motor temperature and more.* Using the vibration alert system, you can program the DX5R to notify you when specific telemetry values reach or exceed limits you define.
*Vehicle must be equipped with a telemetry-enabled receiver like the included SR6000T.
Frequency-Agile DSMR® Technology
The DX5R is built around frequency-agile, DSMR 2.4GHz technology. This exclusive Spektrum™ technology can be used in any type of surface application, including boats. Its range and response, particularly in noisy 2.4GHz environments, are superb. It's also backwards compatible with DSM2® Spektrum receivers. This means most longtime Spektrum users can continue to use the receivers they have. They’ll only need to upgrade if they want the frequency-agility of a DSMR receiver for busy 2.4GHz environments. †
5.5-Millisecond Frame Rate
When matched with a receiver capable of 5.5ms frame rates, the DX5R delivers lightning-fast response that gives new meaning to the word ‘connected’.
The enormous capacity of the DX5R’s on-board memory means you will rarely, if ever, need to juggle models between transmitter memory and your SD card.
Includes SR6000T Telemetry Receiver
You can take advantage of all five channels and available telemetry functions with the included SR6000T. It comes equipped with a built-in telemetry module as well as data ports for voltage, temperature and RPM sensors. An XBus connection for additional sensors is also available.
Programmable vibration Alerts
You can select from a variety of vibration alerts for battery voltage and telemetry functions. Most of these can be set to go off when the voltage level or telemetry data exceeds specific values that you define.
# of Channels: 5
- 5 fully proportional channels
- Pro-class ergonomics you can thoroughly customize
- Advanced programming features
- SimpleScroll™ interface
- Built-In telemetry
- 5.5-millisecond frame rate with compatible receivers
- Programmable vibration alerts
- 250-model memory
- Programming for compatible AVC® receivers
- Includes SR6000T telemetry receiver
- EN328 compatible
- Compatible with DSMR and DSM2 receivers (DSM2 only operates on 16.5ms frame rate)
Modulation: DSMR, DSM2 (Not Marine Compatible)
Model Memory: 250
Transmitter (Tx) Battery Type: AA x 4
Output Strength: Full Range
Part Number SPM5000 # of Channels 5 Modulation DSMR, DSM2 (Not Marine Compatible) Band 2.4GHz Receiver SR6000T Model Memory 250 Transmitter (Tx) Battery Type AA x 4 Output Strength Full Range
