Overview

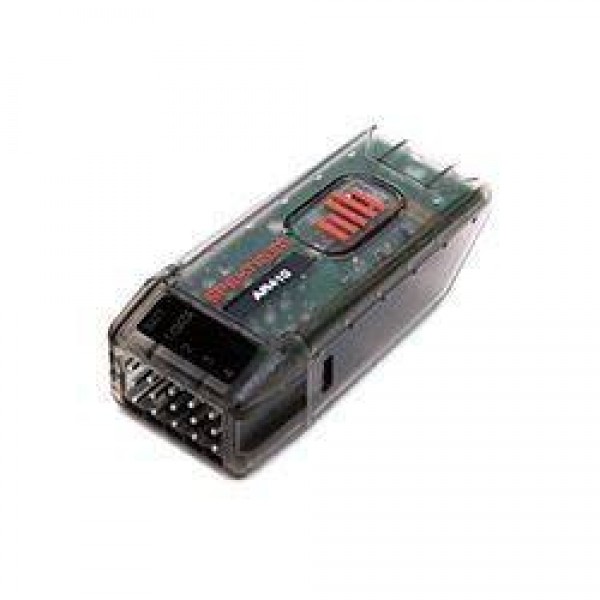

The Spektrum AR410 air receiver is a full-range, 4-channel sport receiver with DSMX/DSM2 compatibility and a compact footprint that’s streamlined to fit in a wide range of models. More than just a simple box that connects your servos, the AR410 features an internal antenna design that delivers a whole new world of installation ease that includes a higher-level of durability and convenience while maintaining superior full-range performance for your electric or engine powered aircraft.
In addition, the AR410 has been integrated with fly-by range telemetry that includes flight log and receiver battery pack voltage data. Access to telemetry is automatic when used with telemetry-capable Spektrum transmitters.* There’s nothing to do in order to enjoy the peace-of-mind instantly knowing receiver battery voltage offers.
No more bind plugs! Instead, a large bind button is used to enter the bind mode. All combined Spektrum gives you more in a basic receiver, like the AR410, so that you can fly with the highest sense of confidence possible and have more fun.Notes:
*Not compatible with the TM1000 and TM1100 external telemetry modules
features
- Compact low-cost, full-range DSMX receiver with telemetry
- Antenna-less design increases convenience, performance and durability
- Integrated flight log and receiver voltage telemetry with fly-by range
- Streamlined, end-pin design in a lightweight hard-case
- Large bind-button eliminates the need for the old bind plug
- Lightweight park flyer-size with full-range performance
- Ideal for most aircraft including indoor sport models
- Capable of low latency 11ms and standard 22ms Frame Rates.
Antenna Length: InternalSpecs
Band: 2.4GHz
Bind Method: Bind Button
Channels: 4
Data Port: No
Failsafe: Yes
Flight Log Compatible: No
Height: 0.55 in (13.9mm)
Input Voltage: 3.5-9V
Length: 1.78 in (45.2mm)
Modulation: DSMX
Number of Receivers: 1
Programmable: No
Range: Full
Resolution: 2048
Rev Limiter: No
Technology: Smart Technology
Telemetry: Integrated
Water-Resistant: No
Weight: 0.25 oz (7 g)
Width: 0.79 in (20.0mm)Product Videos
- Specs
Product Specifications
Part Number SPMAR410 Antenna Length Internal Band 2.4GHz Bind Method Bind Button Channels 4 Data Port No Failsafe Yes Flight Log Compatible No Height 0.55 in (13.9mm) Input Voltage 3.5-9V Length 1.78 in (45.2mm) Modulation DSMX Number of Receivers 1 Programmable No Range Full Resolution 2048 Rev Limiter No Technology Smart Technology Telemetry Integrated Water-Resistant No Weight 0.25 oz (7 g) Width 0.79 in (20.0mm) - Reviews
