- Overview
Notes:
G2 batteries require the use of a Spektrum™ G2 Smart Charger or earlier Smart Charger with G2 update.
features
- Simpler and safer to use
- Balance charge through the IC3® or IC5® connector data wire — with only one connection, no balance lead required
- Faster Auto Discharge at up to 1.5A to safe storage voltage for long battery life and improved performance
- Thicker internal metal side plates protect cells and improve heat dissipation
- Integrated microchip stores unique parameters for each battery
- IC3® and IC5® connectors are also compatible with EC3™ and EC5™ styles
- Specs
Product Specifications

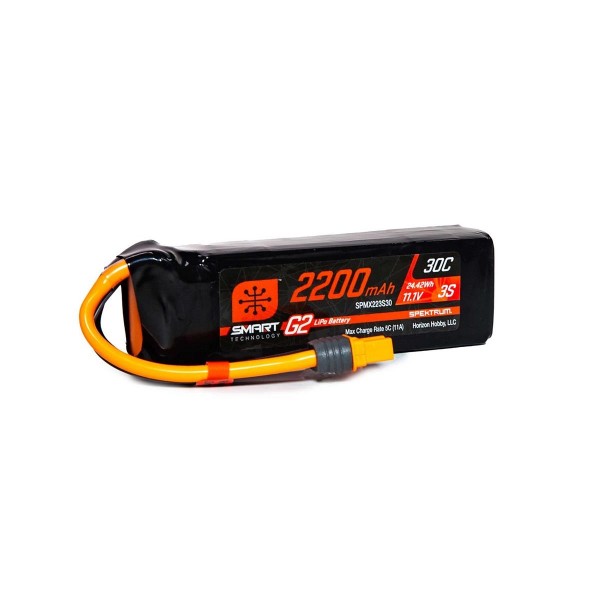

Part Number SPMX223S30 Battery Chemistry LiPo Battery Voltage 3.7V (1-cell) Capacity mAh 2200 Discharge Rate 30C Connector Type EC3, EC5 Capacity 2200mAh Hard Case No Maximum Charge Rate 5C Number of Cells 3 Application Aircraft Product Length 4.4" (112 mm) Battery Voltage 11.1V Product Width 1.34" (34 mm) Battery Capacity 2000-2999mAh Normal/Standard Charge Rate 1C Technology Smart Battery Type LiPo (3.7V per cell) Product Height 0.956" (24mm) Battery Balance Connector G2 Smart Charge Protection Circuitry Yes Normal/Standard Charge Current 2.2A Maximum Burst Discharge Rate 30C Watt Hours 24.42 Connector Type IC3 Product Weight 7.4oz (210g) Wire Gauge 12 AWG - Reviews
