Sidewinder 4 Sensorless ESC Basher Edition with 1406-4600 Sensor Ready Motor


LOADING IMAGES
Castle Creations (CSE) Logo Sidewinder 4 Sensorless ESC Basher Edition with 1406-4600 Sensor Ready Motor
$149.95

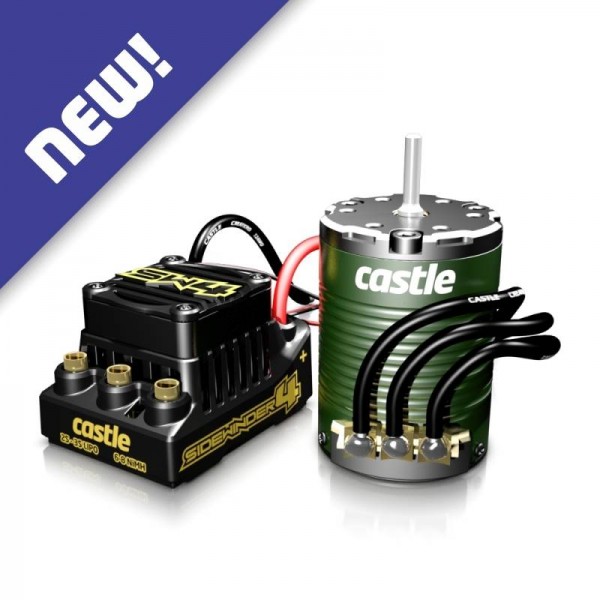

This combo includes a Sidewinder 4 ESC and 1406-4600Kv sensored* motor. The 1406-4600kv motor is a great motor for 2WD short course trucks on 2s LiPo and geared conservatively. It makes a great combo for 1/10th 2WD Stadium trucks and buggies on 2s for general bashing and limited runs on 3s; temperatures will climb quickly on 3s. It makes a great upgrade for 1/10th scale on-road cars for 2s and 3s use. NOT for use in 4WD short course trucks.

Availability: Please call for availability
We might still have one laying around..

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Overview

Send it with Sidewinder!

While the all new SIDEWINDER 4™ builds upon Castle’s most popular platform, the SIDEWINDER 1:10 SCALE SERIES, it is the first of its kind to run Castle’s newest technology, CRYO-DRIVE™. CRYO-DRIVE™ combines technology from cutting-edge hardware and software advancements to increase thermal performance. COOLER TEMPS mean LONGER RUNS and MORE POWER in your SIDEWINDER 4 setup.

Additional Features:

2s - 3s LiPo; 6 - 8 cell NiMH use in vehicles up 6.5lbs with battery, ready-to-run.
Sensorless brushless and/or brushed motor operation.
Waterproof design ESC and splash resistant 30MM fan*
5.0 volts fixed, 2 amps Peak BEC
Audible alerts for error conditions
Enhanced drag brake functionality
Smoother sensorless startups
Convenient transmitter programming for six common adjustable settings
Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (sold separately) or via Field Link Card (sold separately)
Telemetry Link compatible for Futaba® S.BUS2 (sold separately)

The SIDEWINDER 4 is a versatile ESC and is accepted in a wide variety of applications. Whether throwing dirt, ripping through a corner or steadily dominating the trails, we’ve got you covered!

This combo includes a Sidewinder 4 ESC and 1406-4600Kv sensored* motor. The 1406-4600kv motor is a great motor for 2WD short course trucks on 2s LiPo and geared conservatively. It makes a great combo for 1/10th 2WD Stadium trucks and buggies on 2s for general bashing and limited runs on 3s; temperatures will climb quickly on 3s. It makes a great upgrade for 1/10th scale on-road cars for 2s and 3s use. NOT for use in 4WD short course trucks.

Includes:

  • Sidewinder 4 ESC
  • Castle 1406 1Y 4600 Kv sensored* motor
  • Quick Start Guide
  • 1/10th scale gearing chart
  • Decal sheet

Requires:

  • Battery Connector required; Castle 4mm polarized connectors, Dean's Ultra Plug, or Traxxas Power Connector recommended.

Notes:

Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.

Specs

Waterproof : Yes
Telemetry Capable : Yes
Data Logging : No
Auxiliary Wire : No
Minimum Input Voltage : 2S
Maximum Input Voltage : 3S
Sensored Capable : No
Recon G6 Certified ESC : No
ROAR Certified ESC : No
Input Voltage Range: 2-3S LiPo
Kv: 4600
Max. RPM: 100,000
Size: Length: 49.5mm / Diameter: 36mm
Weight (w/wires): 197g/ 6.9oz
Shaft Size: Length: 15mm
Diameter: 1/8" (3.17mm)
Mounting Hole Specifications: M3 @ 25mm
Specs

Product Specifications

Part NumberCSE010-0164-01
WaterproofYes
Telemetry CapableYes
Data LoggingNo
Auxiliary WireNo
Minimum Input Voltage2S
Maximum Input Voltage3S
Sensored CapableNo
Recon G6 Certified ESCNo
ROAR Certified ESCNo
Input Voltage Range2-3S LiPo
Kv4600
Max. RPM100,000
SizeLength: 49.5mm / Diameter: 36mm
Weight (w/wires)197g/ 6.9oz
Shaft SizeLength: 15mm
Diameter1/8" (3.17mm)
Mounting Hole SpecificationsM3 @ 25mm
