Savox WP Digital Servo 638oz/.0.14


LOADING IMAGES
Savox WP Digital Servo 638oz/.0.14
Savox (SAV) Logo Savox WP Digital Servo 638oz/.0.14
$96.99
Savox (SAV) Logo

[SAVSW1212SG]


Be the first to review this product

Sign up for price alert

Sign up to get notified when this product is back in stock

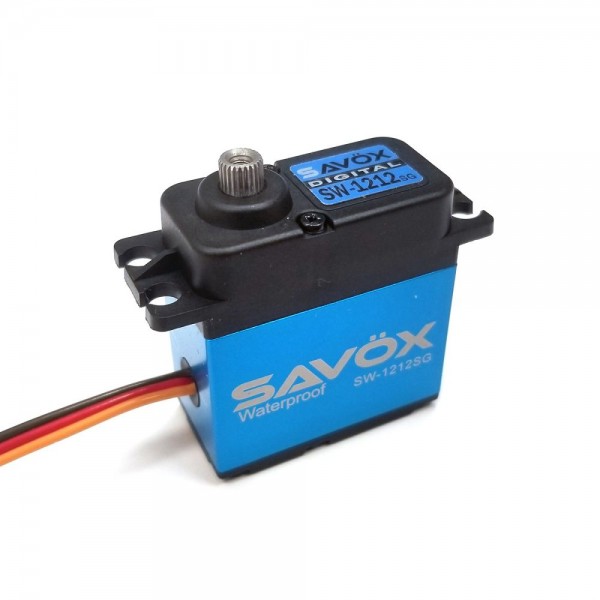

This is a Savox part #SW1212SG, Waterproof, High Torque, High Voltage Coreless Digital Servo, 0.14 sec / 638oz @ 7.4V

Availability: Please call for availability
We might still have one laying around..

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview
Waterproof, High Torque, High Voltage Coreless Digital Servo, 0.14 sec / 638oz @ 7.4V
Specs

Product Specifications

Part NumberSAVSW1212SG
Operating Temperature14° - 122°F (-10° - 50°C)
Running Current (no load)120mA @6.0V, 150mA @7.4V
Stall Current (at locked)8200mA @6.0V, 10000mA @7.4V
Idle Current5mA @6.0V, 5mA @7.4V
Wire Length400 +/- 5mm
Output Gear Spline25 Tooth
Bearings2BB
Operating Travel100° (1000 → 2000 µ second)
Neutral Position1500 µ second
Pulse Width Range800 → 2200 µ second
Maximum TravelAppx 130° (900 → 2100 µ second)
Refresh Rate333 Hz
Motor TypeCoreless
