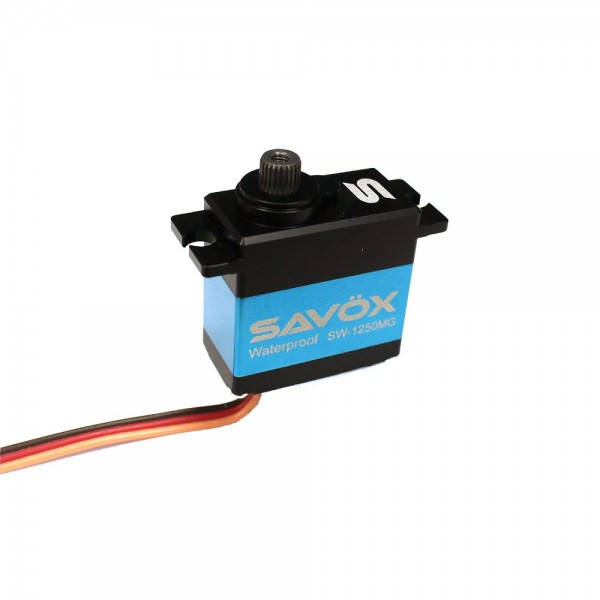

Savox Waterproof Premium Mini Digital Servo

Overview

The SW-1250MG is a premium waterproof, ultra torque, digital mini servo that is the ultimate replacement for Traxxas 1/16 scale applications.

features

Full aluminum waterproof case.
Strong metal gear train for increased durability.
Ultra torque and speed for mini applications
Designed for Traxxas 1/16 vehicles.

Specs

Product Specifications

Part Number	SAVSW1250MG
Operating Temperature	14° - 122°F (-10° - 50°C)
Running Current (no load)	80mA @4.8V, 100mA @6.0V
Stall Current (at locked)	1500mA @4.8V, 1900mA @6.0V
Idle Current	5mA @4.8V, 5mA @6.0V
Wire Length	200 ± 5mm
Output Gear Spline	25 Tooth
Bearings
Operating Travel	100° (1000 → 2000 µ second)
Neutral Position	1500 µ second
Pulse Width Range	800 → 2200 µ second
Maximum Travel	Appx 130° (800 → 2200 µ second)
Refresh Rate	333 Hz
Torque @ 4.8v	5.0 kg-cm/69.4 oz-in
Torque @ 6.0v	8.0 kg-cm/111.1 oz-in
Speed @ 4.8v	0.12 sec/60 deg
Speed @ 6.0v	0. 10sec/60 deg
