Overview

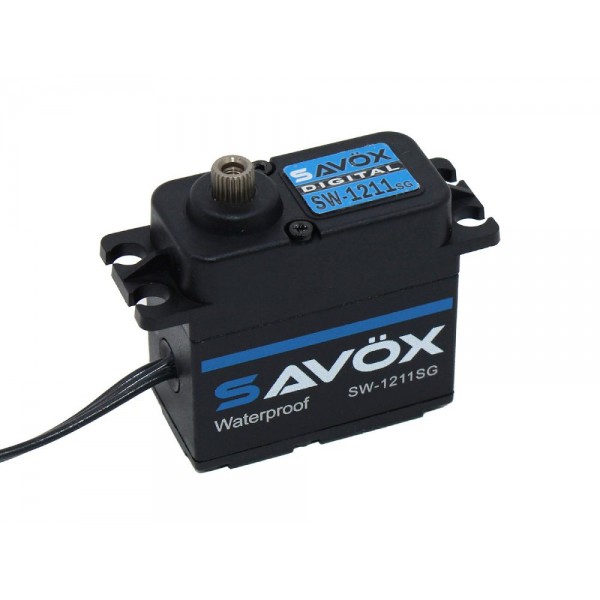

The SW-1211SG-BE Servo is an extremely versatile waterproof servo that's a great updgrade to standard RTR servos and fits many conditions where use is vital in rain, sleet, or snow.
features
- Waterproof construction for harsh elements.
- Strong unique steel gears provide durability and assurance.
- Capable of HV operation.
- Ideal for 1/10 vehicles and boats
Torque @ 6v: 15.0kg/208.3oz-inSpecs
Torque @ 7.4v: 25.0kg/347.2.0oz-in
Speed @ 6v: 0.10 sec/60 deg
Speed @ 7.4v: 0.08 sec/60 deg
Dimensions L x W x H (mm): 40.6 x 20.7 x 42.0
Weight: 71g
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 120mA @6.0V, 150mA @7.4V
Stall Current (at locked): 6000mA @6.0 V, 7400mA @7.4V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 150 ± 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 333 Hz
Motor Type: Coreless- Specs
Product Specifications
Part Number SAVSW1211SG-BE Torque @ 6v 15.0kg/208.3oz-in Torque @ 7.4v 25.0kg/347.2.0oz-in Speed @ 6v 0.10 sec/60 deg Speed @ 7.4v 0.08 sec/60 deg Dimensions L x W x H (mm) 40.6 x 20.7 x 42.0 Weight 71g Operating Temperature 14° - 122°F (-10° - 50°C) Running Current (no load) 120mA @6.0V, 150mA @7.4V Stall Current (at locked) 6000mA @6.0 V, 7400mA @7.4V Idle Current 5mA @4.8V, 5mA @6.0V Wire Length 150 ± 5mm Output Gear Spline 25 Tooth Bearings 2BB Operating Travel 100° (1000 → 2000 µ second) Neutral Position 1500 µ second Pulse Width Range 800 → 2200 µ second Maximum Travel Appx 130° (900 → 2100 µ second) Refresh Rate 333 Hz Motor Type Coreless - Reviews
