Overview

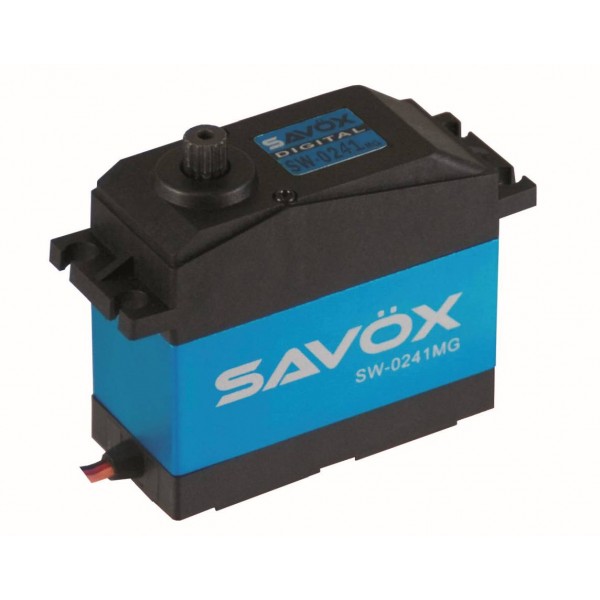

The SW-0241MG is a waterproof, large scale, and digital servo. It is metal-geared with an amazing amount of torque while capable of operating on high voltage.
features
- Ideal for 1/5 scale off road, large scale boat and aircraft applications
- Waterproof case design.
- Strong metal gear train for added durability.
Torque @6v: 30.0kg/416.6oz-inSpecs
Torque @7.4v: 40.0kg/555.5oz-in
Speed @6v: 0.21 sec/60 deg
Speed @7.4v: 0.17 sec/60 deg
Dimensions L x W x H (mm): 65.8 x 30.0 x 59.1
Weight: 200.0g
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 150mA @6.0V, 180mA @7.4V
Stall Current (at locked): 4600mA @6.0V, 5700mA @7.4V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 200 ± 5mm
Output Gear Spline: 15 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (800 → 2200 µ second)
Refresh Rate: 240 Hz
Motor Type: Brushed- Specs
Product Specifications
Part Number SAVSW0241MG Torque @6v 30.0kg/416.6oz-in Torque @7.4v 40.0kg/555.5oz-in Speed @6v 0.21 sec/60 deg Speed @7.4v 0.17 sec/60 deg Dimensions L x W x H (mm) 65.8 x 30.0 x 59.1 Weight 200.0g Operating Temperature 14° - 122°F (-10° - 50°C) Running Current (no load) 150mA @6.0V, 180mA @7.4V Stall Current (at locked) 4600mA @6.0V, 5700mA @7.4V Idle Current 5mA @4.8V, 5mA @6.0V Wire Length 200 ± 5mm Output Gear Spline 15 Tooth Bearings 2BB Operating Travel 100° (1000 → 2000 µ second) Neutral Position 1500 µ second Pulse Width Range 800 → 2200 µ second Maximum Travel Appx 130° (800 → 2200 µ second) Refresh Rate 240 Hz Motor Type Brushed - Reviews
