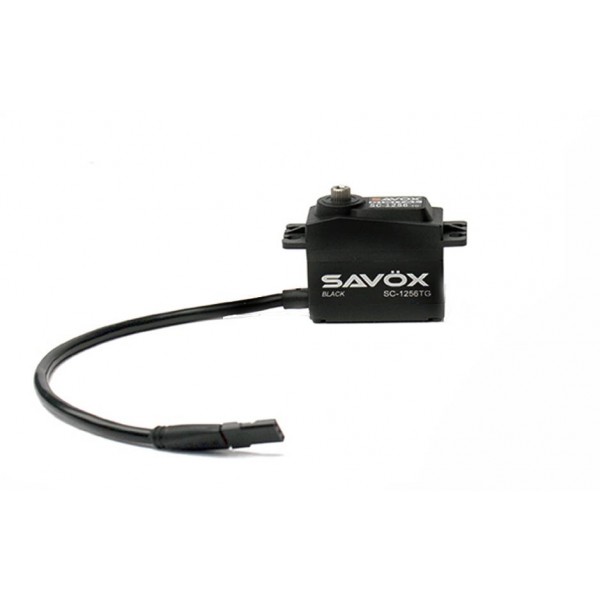

This is a Savox part #SC1256TG-B, A Black Edition Standard Size Coreless Digital Servo, .15/277 @6V
features
- Black aluminum center case.
- Shorter 200mm black shielded lead wire.
- Combines leading edge technology with super high 12 bit (4096) resolution and titanium gears.
- Super light-weight.
- Coreless motor provides high speed, incredible efficiency, and low power consumption.
- Titanium gears ensure long life and durability.
- The aluminum case design not only looks good but also allows for cooler operating temps.
- Our servos are totally green – from materials to production, these servos are environmentally friendly.
- Ideal for steering applications in 1/8 scale buggies, monster trucks and rock crawlers.
Dimensions: 40.3x20.2x37.2mmSpecs
Weight: 52.4g
Speed @4.8V: .18 sec/60
Speed @6.0V: .15 sec/60
Torque @4.8V: 222.2 oz-in
Torque @6.0V: 277.7 oz-in
Gear: Titanium & Aluminum
Bearing: 2BB
Case: Aluminum
Output Shaft: 25 Tooth Spline
Frequency: 250-333hz
Pulse Width Frequency: 1520- Specs
Product Specifications
Part Number SAVSC1256TG-BE Dimensions 40.3x20.2x37.2mm Weight 52.4g Speed @4.8V .18 sec/60 Speed @6.0V .15 sec/60 Torque @4.8V 222.2 oz-in Torque @6.0V 277.7 oz-in Gear Titanium & Aluminum Bearing 2BB Case Aluminum Output Shaft 25 Tooth Spline Frequency 250-333hz Pulse Width Frequency 1520 - Reviews
