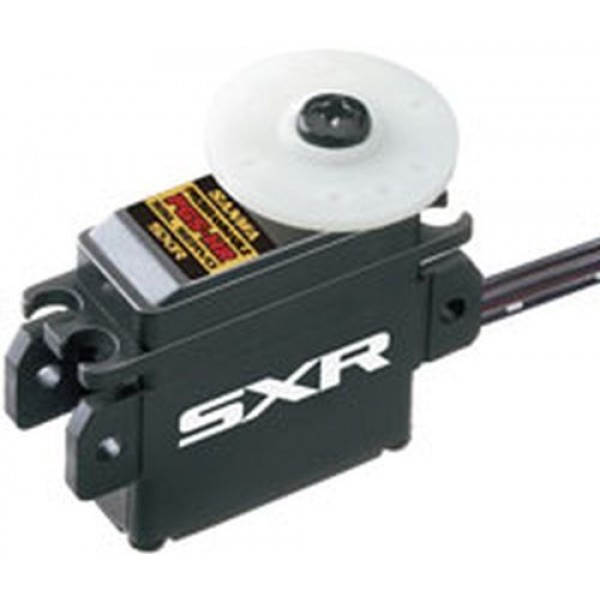

Sanwa PGS-HR Programmable SSL SXR Mini Servo

Sanwa PGS-HR Programmable Mini Servo - 0.10 sec/60deg 3.8kg cm - 6.0v

• FH5U: SXR (Sanwa Xtreme Response) Mode-Compatible
• SSL-Compatible Programmable Servo
• Compatible with Code 10 (M12S, Exzes ZZ, MT-44)
• Not Compatible with Code 5 (M12, Exzes Z, MT-4S, MT-4, MT-S)
• PGS Setting Gear-Compatible
• Specialized (1/12 Scale Models)
• LiPo (1 and 2 cell) Battery Support
• Digital Servo
• Coreless Motor
• Full metal gear
• Programmable Servo to be compatible with SSL and Telemetry at Launch
• Setting Adjustment by wireless from Radio
• Setting Adjustment to connect Servo with Setting Gear
• Regarding Temperature, Current, Voltage and Volume Position on Servo inside, Telemetry-transmission can be passed to Radio.
• Initial Setting on Setting Gear is necessary.
• Setting Items:
• SSL-CH (SSL Channel Setting)
• STRETC (Stretcher Adjustment)
• BOOST (BOOST Adjustment)
• D-Band (Dead Band Adjustment)
• MV-MID (Middle Torque Adjustment)
• MV-END (Later Torque Adjustment)
• BREAK (Break Adjustment)
• MV-HOLD (Power Adjustment at whole area)
• MV-FRQ (Feeling Adjustment at whole area)
• MAX-PW (MAX Duty Adjustment)
• Setting Gear is necessary for setting.
• PGS-Servo Explanation
