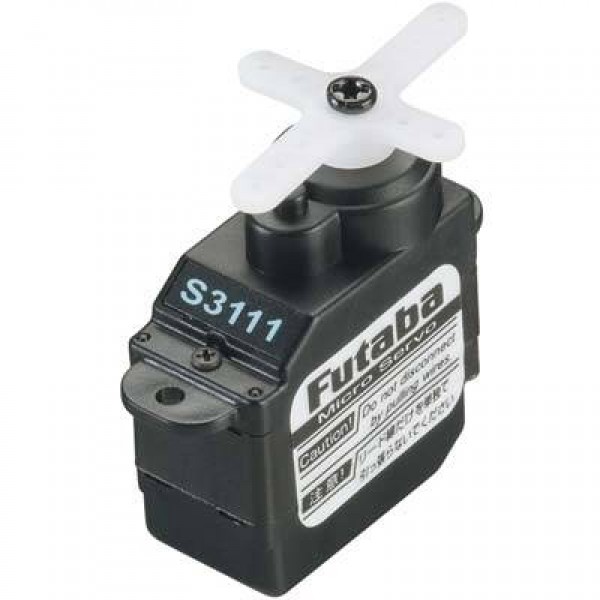

Futaba S3111 Micro Servo, 6.6g


LOADING IMAGES
Futaba (FUT) Logo Futaba S3111 Micro Servo, 6.6g
$29.99
This is the Futaba part #S3111, 6.6g Micro Servo with J Connector. Small in size and light weight, the S3111 is ideal for Park Flyers and small electric aircraft

Availability: Please call for availability
We might still have one laying around..

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Specs

Dimensions: .86" x 0.43"x .78" (21.8 x 11 x 19.8mm)
Product Weight: .23oz. (6.6g)
Output Shaft Style: 15 Tooth (1F) Spline
Voltage Range: 4.8V
No-Load Speed (4.8V): 0.12sec/60°
Stall Torque (4.8V): 8.3 oz/in. (.6kg.cm)
Pulse Amplitude: 3-5V
Operating Temperature: -20°C to +60°C
Continuous Rotation Modifiable: No
Direction w/ Increasing PWM Signal: Counter-Clockwise
Motor Type: 3 Pole Ferrite
Potentiometer Drive: Indirect Drive
Output Shaft Support: Top Ball Bearing
Gear Type: Straight Cut Spur
Gear Material: Nylon
Wire Length: 4"
Specs

Product Specifications

Part NumberS3111
Dimensions.86" x 0.43"x .78" (21.8 x 11 x 19.8mm)
Product Weight.23oz. (6.6g)
Output Shaft Style15 Tooth (1F) Spline
Voltage Range4.8V
No-Load Speed (4.8V)0.12sec/60°
Stall Torque (4.8V)8.3 oz/in. (.6kg.cm)
Pulse Amplitude3-5V
Operating Temperature-20°C to +60°C
Continuous Rotation ModifiableNo
Direction w/ Increasing PWM SignalCounter-Clockwise
Motor Type3 Pole Ferrite
Potentiometer DriveIndirect Drive
Output Shaft SupportTop Ball Bearing
Gear TypeStraight Cut Spur
Gear MaterialNylon
Wire Length4"
