- Overview
FEATURES Chassis: Aluminum with 0.16" (4mm) thick steel wire rollbar
Drive: Four wheel with CVA driveshafts
Motor: Reedy 1515-SL 2000kV brushless
Radio: Associated XP2G 2.4GHz with high-torque DS1510MG metal gear
servo, and water resistant receiver box
Electronic Speed Control: XP SC1300-DB with independent battery
voltage sensing (two 2S 7.4V LiPO maximum)
Differentials: Sealed bevel gear type
Shocks: Eight oil-filled

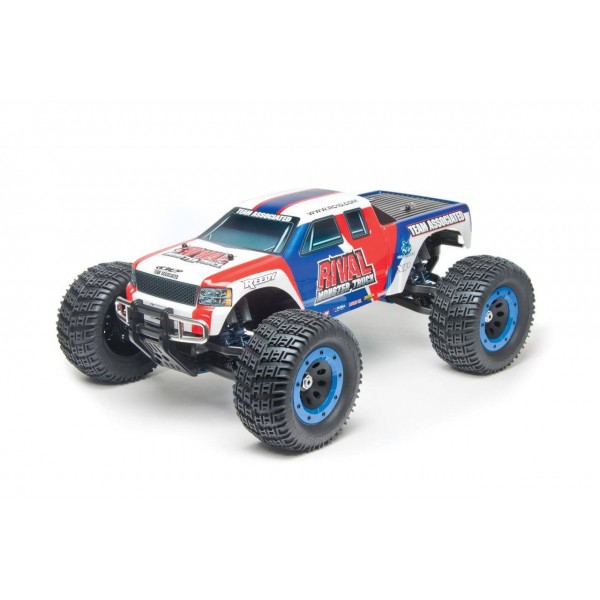

Body: Painted and trimmed RIVAL monster truck style
Batteries: Two Reedy 7-cell 8.4V NiMH WolfPack with Deans Ultra Plugs
battery tray holds two 6 or 7-cell NiCd/NiMH or two 2S LiPo packs
(not included)
Bumpers: Front and rear
Suspension: Super long travel, four wheel independent
Wheels: Black plastic beadlock style
with 17mm hexes and locking wheel nuts
Tires: Monster truck type with V-shaped tread
Steering: Bellcrank type with servo saver
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicleINCLUDES RTR Rival Monster Truck with 2.4GHz radio system, brushless motor,
ESC, painted body, two 8.4V NiMH batteries, and instruction manualREQUIREMENTS AA Batteries: Six for transmitter
Battery Charger: NiMH compatible
Maintenance and track equipmentSPECIFICATIONS Vehicle-
Length: 23.4" (594mm)
Width: 17.7" (450mm)
Weight: 13.2lbs (5990g)
Body-
Length: 22" (559mm)
Width: 7.9" (200mm)
Height: 5.7" (145mm)- Specs
Product Specifications
Part Number ASC20510 Scale 1/8 Drivetrain 4WD Kit Type RTR - Reviews
