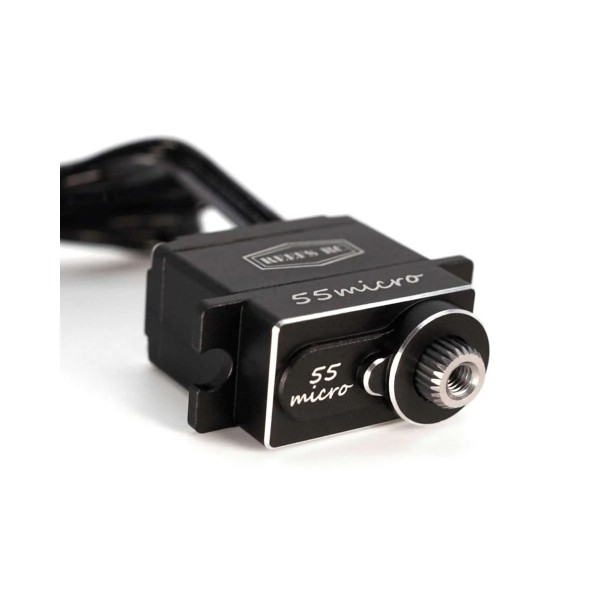

This is the 55Micro Waterproof Metal Gear Digital High Voltage Micro Servo. Designed specially to be a direct drop-in fit for the Traxxas TRX-4 with shifting servos and TRX-4M platforms, this small but mighty servo is high voltage capable with no need for BEC or to be bypassed! Additionally, the inclusion of the robust steel gears and the all CNC-machined aluminum case provide unparalleled durability and heat dissipation to ensure reliability under harsh conditions!
Includes:
- (1) 55Micro Waterproof Metal Gear Digital Micro Servo
- Assorted Servo Horns and Mounting Hardware
Notes:
Not recommended for Heavy modified TRX-4M.
features
- The ultimate upgrade for TRX-4 and TR-6 with shifting servos
- A great option for stock lightweight TRX-4M
- High voltage capable
- Waterproof design
- Durable all steel gears
- Fully Programmable with Reefs USB Link adaptor (SEHREEFS64 - Sold Separately)
- CNC-machined aluminum case
Speed @6.0V: 0.11sec/60°Specs
Speed @7.4V: 0.09sec/60°
Speed @8.4V: 0.08sec/60°
Torque @6.0V: 41oz-in (2.95kg-cm)
Torque @7.4V: 48oz-in (3.45kg-cm)
Torque @8.4V: 55oz-in (3.96kg-cm)
Motor: Digital Coreless
Operating Voltage: 4.8-8.4V
Dimensions(LxWxH): 0.90x0.50x0.86in (22.9x12.8x22mm)
Weight: 0.67oz (19g)
Operating Spline: 25T- Specs
Product Specifications
Part Number SEHREEFS171 Speed @6.0V 0.11sec/60° Speed @7.4V 0.09sec/60° Speed @8.4V 0.08sec/60° Torque @6.0V 41oz-in (2.95kg-cm) Torque @7.4V 48oz-in (3.45kg-cm) Torque @8.4V 55oz-in (3.96kg-cm) Motor Digital Coreless Operating Voltage 4.8-8.4V Dimensions(LxWxH) 0.90x0.50x0.86in (22.9x12.8x22mm) Weight 0.67oz (19g) Operating Spline 25T - Reviews
