  • Reefs RC 422HD High Torque Digital HV Waterproof Servo, 0.12/422 @ 7.4V

Reefs RC 422HD High Torque Digital HV Waterproof Servo, 0.12/422 @ 7.4V


LOADING IMAGES
Reefs RC 422HD High Torque Digital HV Waterproof Servo, 0.12/422 @ 7.4V
Reefs RC 422HD High Torque Digital HV Waterproof Servo, 0.12/422 @ 7.4V
$79.99

[SEHREEFS01]


Be the first to review this product

Sign up for price alert

Sign up to get notified when this product is back in stock

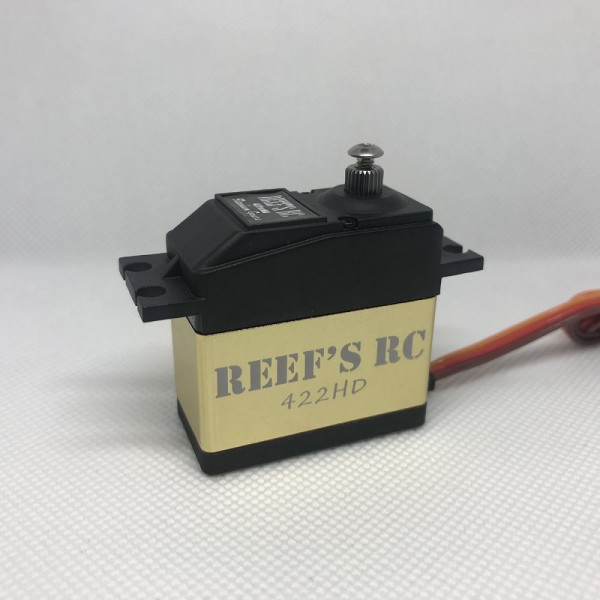

This is a Reefs RC part #SEHREEFS01, 422HD High Torque Digital HV Waterproof Servo, 0.12/422 @ 7.4V

Availability: Please call for availability
We might still have one laying around..

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Overview

Reefs 422HD High Torque Titanium Gear Digital Servo.

Notes:

BEC Recommended. Do not power over 7.4V

Specs

Waterproof: Yes
Motor: HV Coreless
Gears: Titanium
Bearing Type: Dual Bearing
Weight: 2.2 oz
Dimensions (LxWxH): 1.6x0.8x1.5"
Torque: 393oz @ 6.0V / 422oz @ 7.4V
Speed: .13 @ 6.0V / .12 @ 7.4V
Spline: 25T
Dead Band Width: 2
Wire Length: 290mm
Specs

Product Specifications

Part NumberSEHREEFS01
WaterproofYes
MotorHV Coreless
GearsTitanium
Bearing TypeDual Bearing
Weight2.2 oz
Dimensions (LxWxH)1.6x0.8x1.5"
Torque393oz @ 6.0V / 422oz @ 7.4V
Speed.13 @ 6.0V / .12 @ 7.4V
Spline25T
Dead Band Width2
Wire Length290mm
