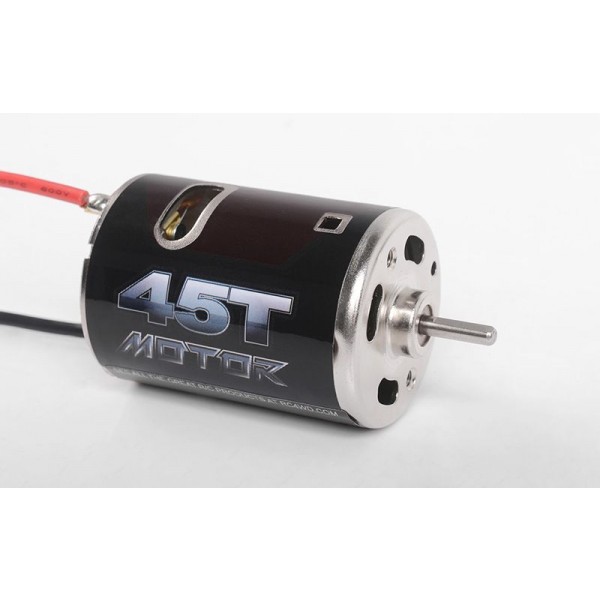

RC4WD 540 Crawler Brushed Motor 45T

Overview

This is an RC4wd part #Z-E0004, 540 Crawler Brushed Motor, 45 Turn

Includes:

(1) RC4WD 540 Crawler Brushed Motor (45T)

features

Custom made 540 Steel case
Chrome plated case
Build in capacitor for minimizing glitches
High torque magnet and rotor
Small footprint (50mm long)
Tuned for Rock Climbing and Scale Driving
Polished Bushings
Fits Axial SCX10 III

Specs

(At no load) RPM @ 7.2V : 9500 (10%), .95Amp Current
(Max Efficiency) RPM @ 7.2V : 8100 (10%), 4.29Amp Current
Designed oprating temperature range: -30C to +80C
Motor end play : .50mm max
Noise Level: < 60db
Body OD: 1.39in / 35.5mm
Output Shaft Length: 0.43in / 11mm
Output Shaft: 0.12in / 3.1mm
Min and Max Voltage Range: 2.4V-30V

Specs

Product Specifications

Part Number	RC4ZE0004
(At no load) RPM @ 7.2V	9500 (10%), .95Amp Current
(Max Efficiency) RPM @ 7.2V	8100 (10%), 4.29Amp Current
Designed oprating temperature range	-30C to +80C
Motor end play	.50mm max
Noise Level	< 60db
Body OD	1.39in / 35.5mm
Output Shaft Length	0.43in / 11mm
Output Shaft	0.12in / 3.1mm
Min and Max Voltage Range	2.4V-30V
