RC4WD 540 Crawler Brushed Motor 20T


LOADING IMAGES

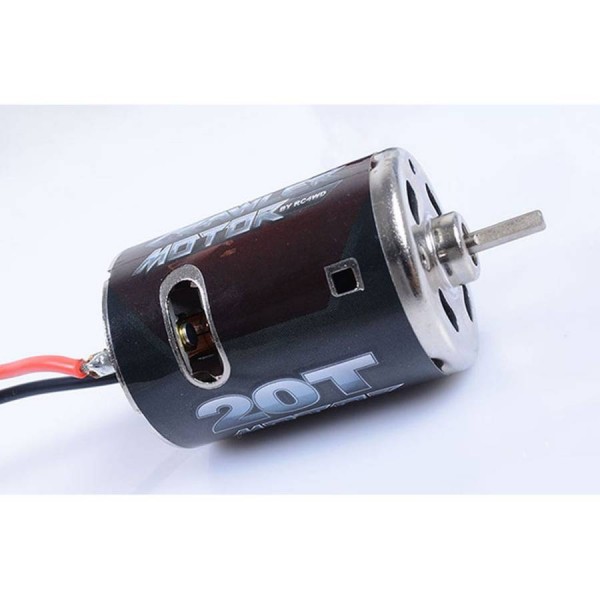

RC4WD 540 Crawler Brushed Motor 20T
$9.99
This is a standard size 540 brushed motor that is able to be used in a wide range of popular RC trucks and cars.

Availability: Please call for availability
We might still have one laying around..

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

This is a standard size 540 brushed motor that is able to be used in a wide range of popular RC trucks and cars.

Includes:

  • 1x RC4WD 20T Brushed Crawler Motor with Wire Leads and Bullet Connectors

Requires:

  • ESC compatible with motor

features

  • Tuned for rock climbing and scale driving
  • Custom made 540 steel case
  • Chrome plated case
  • Small footprint (50mm long)
  • Built-in capacitor for minimizing glitch
  • High torque magnet and rotor
  • Polished bushings
  • Stand up brushes

Specs

Case Diameter: 1.39 (35.5mm)
Length: 1.96 (50mm)
Output Shaft Length: 0.43 (11mm)
Output Shaft OD: 0.12 (3.1mm)
Weight: 5.5oz (156g)
No Load RPM @ 7.2V: 20,000 +10% 2A current
Rated Load RPM @ 7.2V: 18,400 +10% 7.92A current
Operating Temperature Range: 14° to 140°F (-10° to 60°C)
Shaft End Play: 0.1mm to 0.5mm
Noise Level: <78DB
Specs

Product Specifications

Part NumberRC4Z-E0065
Case Diameter1.39 (35.5mm)
Length1.96 (50mm)
Output Shaft Length0.43 (11mm)
Output Shaft OD0.12 (3.1mm)
Weight5.5oz (156g)
No Load RPM @ 7.2V20,000 +10% 2A current
Rated Load RPM @ 7.2V18,400 +10% 7.92A current
Operating Temperature Range14° to 140°F (-10° to 60°C)
Shaft End Play0.1mm to 0.5mm
Noise Level<78DB
