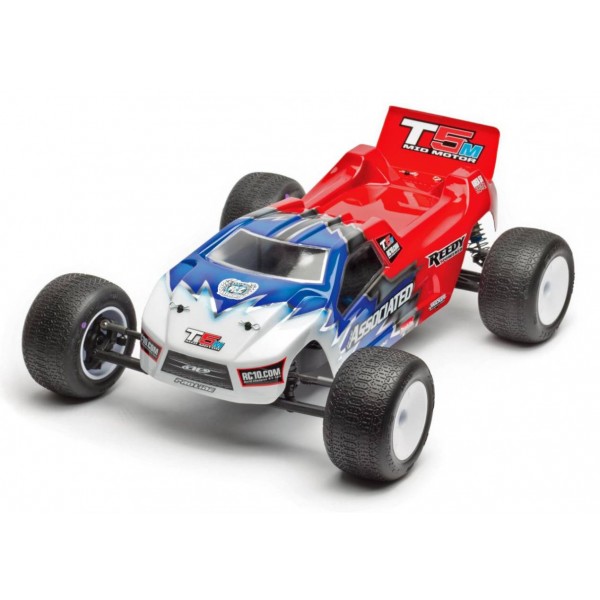

Associated 1/10 RC10T5M 2WD Kit

Chassis: Aluminum 0.098" (2.5mm) thick, chassis fits ROAR approved
2S saddle packs & 2S short packs using optional foam insert, mid
motor position
Drive: Rear wheel
Shocks: Factory Team V2 Big Bore 12mm threaded aluminum body, 3mm
shafts and low friction O-rings
Transmission: Four gear, with lighter aluminum top shaft, stronger
gears, and a 14 carbide ball differential for increased life and
torque capacity
Front Suspension: Inline, with heavy-duty steering and caster blocks,
insert system for easy caster and trailing arm adjustments,
adjustable front kick-up of 25° and 30°
Steering: Full ball bearing with horizontal ball studs for finer
Ackermann, Ackermann refers to the effect of the inside wheel
rotating faster than the outside wheel during turns
Body: Pro-Line T5M with clear body spoiler
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Camber: Adjustable front and rear, camber refers to the angle of the
tops of the tires from vertical when viewed from front or behind
vehicle

RC10T5M Truck Kit with Clear Body, Decal Sheet, 35wt Shock Fluid,
Foam Inserts for Battery and Instructions

Radio: 2-channel with high-torque servo
Motor: 540 size
Pinion Gear: 48P
ESC: Compatible with selected motor
Battery: 2S saddle, or 2S short LiPo pack
Battery Charger: To match selected battery
Wheels: 2.2" truck wheels
Tires: 1/10 scale truck tires for 2.2" wheels
Building and track equipment

Vehicle-
Length: 15.9" (406mm)
Width: varies
Wheelbase: 11.2-11.4" (285-289mm)
Body-
Length: 16.10" (409mm)
Width: 7.5" (190mm) at rear wheels, widest point
6.4" (163mm) behind front wheels, narrowest point
Height: 4" (102mm)
