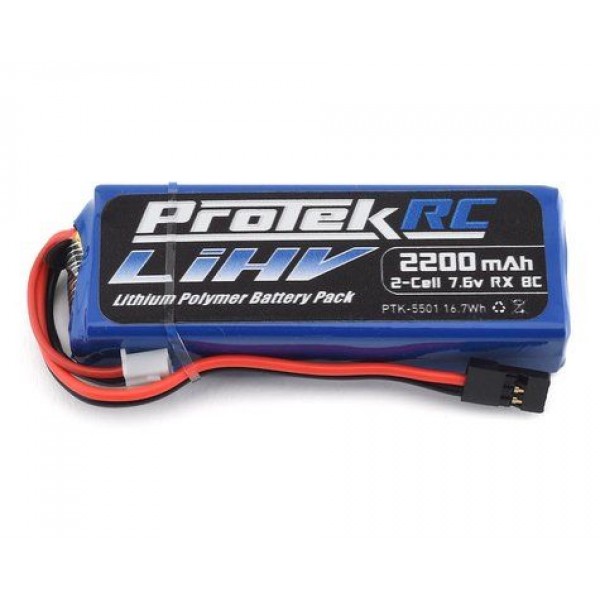

- ProTek RC HV LiPo Receiver Battery Pack (Mugen/AE/8ight-X) (7.6V/2200mAh) (w/Balance Plug)
- Specs
Product Specifications
Part Number PTK-5501 Battery Chemistry LiHV Battery Voltage 7.4V (2-cell) Capacity mAh 2200mAh Capacity 2200 mAh Case Lexan shell covered with heat shrink Weight 85 grams (including wire and connector) Li-Po cell arrangement 2S2P Nominal voltage 7.6 Volts Discharge capability 8C continuous (17.6A) Dimension (LxWxH) 85x30x17mm Connector JR Style with thick 20AWG Silicone Wire Balancer Plug XH style (Align, E-Flite compatible) Recommended Application Mugen and Team Associated vehicles, 1/10th & 1/8th scale nitro models, Helicopters and Airplanes NOTE When using high energy Li-Polymer Batteries, please do not over-discharge or over-charge batteries as this will result in over heated batteries. Discharging capacity can't exceed 80% of the max capacity of the pack after full charging to ensure a good cycle performance. It is recommended to fully charge a brand new battery before using and only discharge the battery 50% for first 5 cycles. Always monitor race time and/or set a low voltage warning on ESC (End voltage cannot be lower than 3.2v per cell). Do not use the battery that has too low a voltage. - Reviews
