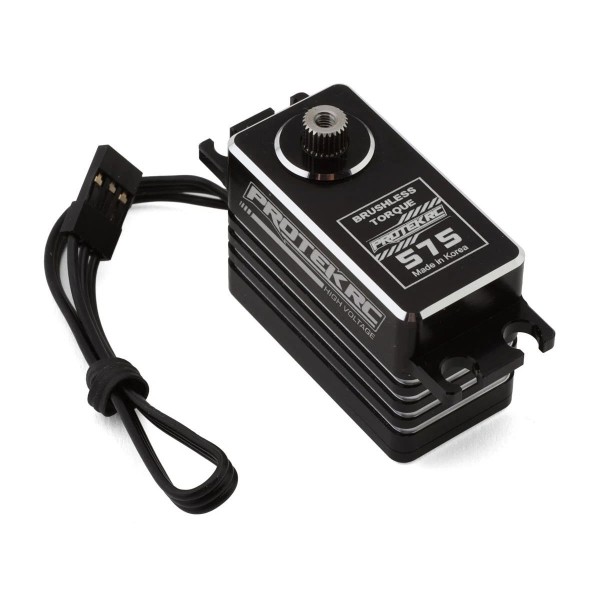

Protek RC 575 Low Profile High Voltage Brushless Servo

The 575 Low Profile Servo brings together cutting-edge brushless technology and unmatched performance, delivering the holding power, speed, and precision that rival coreless servos. With the added advantages of brushless motors—greater efficiency and extended lifespan—this servo is the perfect choice for pro-level builds demanding top-tier reliability and accuracy. Housed in a sleek black anodized aluminum case for a premium look, the servo's design is both rugged and functional. The aluminum upper case ensures extreme durability, while the heat sink center case efficiently dissipates heat and reduces overall weight. Included is an aluminum single-arm clamping servo horn and a complete set of mounting washers for secure, long-lasting installation.

• Ideal for a 1/10 Off-Road and On-Road Racing Platforms
• Brushless motor
• High voltage circuitry
• Full steel gears
• Full aluminum black anodized heat sink case
• Single offset servo spline

Application: 1/10 Scale
Operating Voltage: 6.0V - 8.4V
Operating Temperature: 14° to 140° F (-10 to +60° C)
Operating Speed @ 7.4V: 0.06/60° sec
Operating Speed @ 8.4V: 0.055/60° sec
Dynamic Torque @ 7.4V: 511oz-in (36.7 kg-cm)
Dynamic Torque @ 8.4.0V: 575oz-in (41.4 kg-cm)
Motor Type: Brushless Digital
Output Shaft: 25T
Gears: Steel
Weight: 63g
Pulse/Frequency: 1520s / 333hz
Dimensions: 39.5x20x30.4mm
Length (Bottom to Mount): 19mm
Size:
This High-Performance Racing Servo is specifically designed for 1/10 touring cars and 1/10 off-road buggies, with its low profile design allowing it to fit seamlessly into most chassis spaces. Its compact size ensures optimal weight distribution, enhancing the performance of high-precision vehicles across both on-road and off-road environments. Perfect for demanding racing conditions, it provides the control and responsiveness needed for competitive applications.

Power & Gears:
The ProTek RC PTK-575 LP servo is equipped with a high-performance brushless motor and durable steel gears, ensuring maximum efficiency and longevity. The brushless motor provides smoother operation and higher torque, with less heat generation and longer lifespan compared to traditional motors. Additionally, the steel gears offer exceptional durability, resisting wear and maintaining precise performance even under the high-stress demands of competitive racing environments.

Application & Design:
The ProTek LP servo is an ideal choice for 1/10 touring car chassis and off-road buggies, delivering optimal weight distribution for superior chassis tuning. Its low profile, combined with a sleek and compact design, ensures seamless integration increasing chassis space, helping to maintain balance and performance. This precision-engineered servo enhances control and responsiveness, making it a perfect fit for high-performance applications where agility and stability are key.
