ProTek RC 130SS High Voltage Digital "Super Speed" Metal Gear Servo Standard


LOADING IMAGES
ProTek RC 130SS High Voltage Digital "Super Speed" Metal Gear Servo Standard
$89.99
The ProTek R/C 130SS Digital Super Speed Metal Gear High Voltage Servo. With metal gears, aluminium case and ideal for 1/8 and 1/10 scale vehicles

Availability: In stock*

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Overview

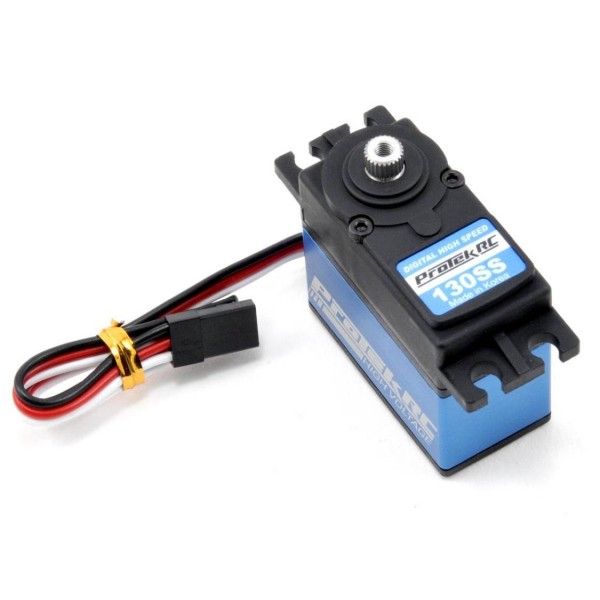

This is the ProTek R/C 130SS Digital Super Speed Metal Gear High Voltage Servo. ProTek R/C Servos have been developed to provide enthusiasts with high quality servo's that will exceed expectations at every level. With features that meet or surpass what our competition can provide, ProTek R/C servos deliver performance and unmatched value, with industry leading customer support.

The ProTek R/C 130SS High Voltage Super Speed servo delivers lighting fast 0.06 transit speed and 211 oz-in of torque at 6.0V, and when you bump the voltage to 7.4 the spec's increase to 0.05 and 260 oz-in! Spec's like these make this servo an excellent choice for any 1/10 to 1/8 scale vehicle application. Other features include a full metal gear train that is supported by dual ball bearings, a 200mm long 22awg connector wire with gold plated connectors, a coreless motor and an aluminum middle case that helps to dissipate heat and helps to increase efficiency.

Plus, instead of a cheap plastic servo horn, ProTek R/C goes the extra mile with an included aluminum single arm servo horn that will stand up to a majority of the punishment you can throw at it. Stop wasting your money on budget servos that look good in the spec list, but fall short when its time to perform. Get ProTek and don't look back.

Notes:

Warning! This ProTek R/C servo requires that you use a m3x10mm screw to attach the servo horn to the output shaft. If you choose to use another screw, be sure to use a 10mm length screw. Use of a shorter screw can cause failure and will void your warranty.

features

  • Ideal for any 1/10 to 1/8 scale vehicle application
  • Aluminum middle case
  • High voltage circuitry
  • 0.06 transit speed, and 211 oz-in of torque @ 6.0V
  • 0.05 transit speed, and 260 oz-in of torque @ 7.4V
  • Aluminum single arm servo horn
  • Full metal gears and dual ball bearings
  • 200mm long 22awg connector wire w/gold plated connectors
  • Coreless motor

Specs

Servo Model : 130SS
Recommended Application: 1/10 to 1/8 scale surface
Operating Voltage: 4.8V - 7.4V
Operating Temperature: 14° to 140° F (-10 to +60° C)
Operating Speed @ 6.0V: 0.06/60° sec
Operating Speed @ 7.4V : 0.05/60° sec
Dynamic Torque @ 6.0V : 211 oz-in (15.2 kg-cm)
Dynamic Torque @ 7.4V : 260 oz-in (18.7 kg-cm)
Motor Type: High Efficiency Coreless Motor
Output Shaft: 25 Tooth
Gears: Metal
Weight: 63.8g
Pulse/Frequency : 1520μs / 333hz
Specs

Product Specifications

Part NumberPTK-130SS
Servo Model130SS
Recommended Application1/10 to 1/8 scale surface
Operating Voltage4.8V - 7.4V
Operating Temperature14° to 140° F (-10 to +60° C)
Operating Speed @ 6.0V0.06/60° sec
Operating Speed @ 7.4V0.05/60° sec
Dynamic Torque @ 6.0V211 oz-in (15.2 kg-cm)
Dynamic Torque @ 7.4V260 oz-in (18.7 kg-cm)
Motor TypeHigh Efficiency Coreless Motor
Output Shaft25 Tooth
GearsMetal
Weight63.8g
Pulse/Frequency1520μs / 333hz
