- Overview
FEATURES Chassis: Composite plastic, modular design with enclosed water-
resistant receiver box
Drive: Four wheel shaft drive with upgraded CVAs and rear dogbones
for improved durability, aluminum drive shaft
Differentials: Heavy duty gear type
Motor: Reedy 550-SL 3500kV 4-pole brushless motor
Radio: XP2G 2.4GHz 2-channel with XP metal gear digital steering
servo
ESC: Splash-proof Reedy SC800-BL with High Current T-plug connector
(2-3S LiPo compatible)
Shocks: 16mm Big Bore, composite body, fluid-filled
Wheels: 15 spoke offroad, hex drive, black in color
Bumpers: Short course design, composite plastic construction
Tires:
Ball Bearings: Full set included
Body: Trimmed and painted
Caster: Adjustable, caster/toe-in refers to the angle of the
suspension when viewed from the side of the car in relation to the
chassis
Camber: Adjustable, camber refers to the angle of the tops of the

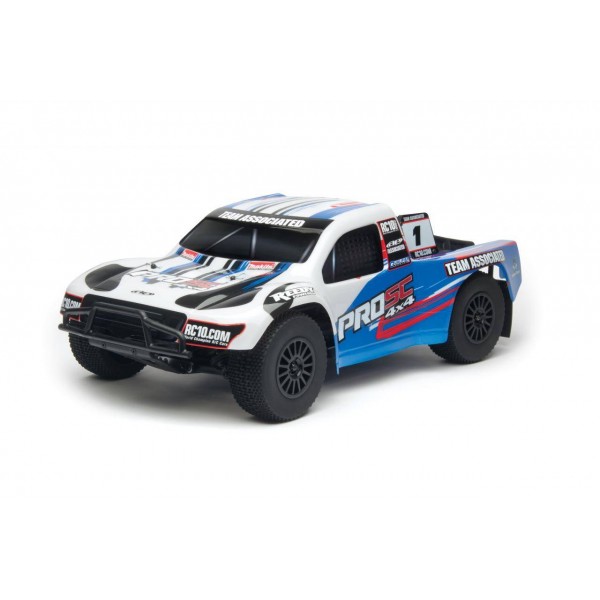

tires from vertical when viewed from front or behind vehicleINCLUDES Pro SC 4x4 Short Course Truck with Brushless Motor, ESC, 2.4GHz
Radio, trimmed and painted Body, Instruction ManualREQUIREMENTS AA Batteries: Six for transmitter
Battery: 2S 7.4V LiPo at least 3300mAh 30C w/Dean's Ultra connector
Battery Charger: Compatible with selected battery
LiPo Charging Bag
Track and maintenance equipmentSPECIFICATIONS Vehicle-
Length: 21.06" (535mm)
Width: 11.42" (290mm)
Wheelbase: 12.76" (324mm)
Weight: 5.78lbs (2624g)
Body-
Length: 21" (529mm)
Width: 11.6" (296mm) at rear wheels, widest point
9" (230mm) behind front wheels, narrowest point
Height: 6.3" (161mm)- Specs
Product Specifications
Part Number ASC7063 Scale 1/10 Drivetrain 4WD Kit Type RTR - Reviews
