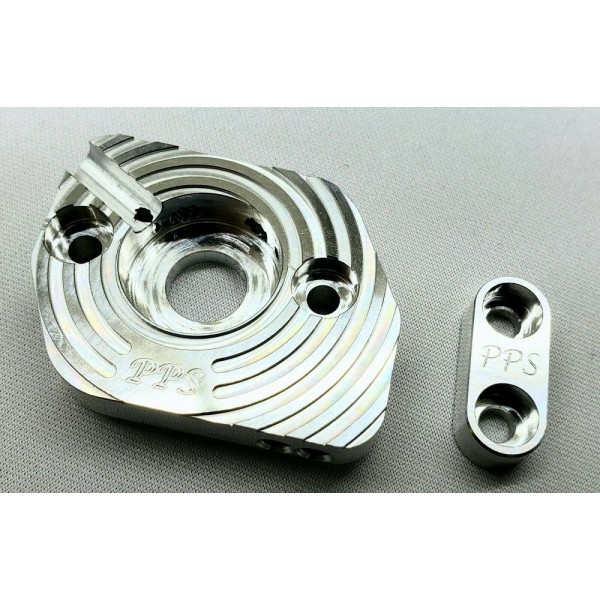

PPS 30mm Motor Mount Insert (Arrma Kraton 8s)

This gorgeous piece of High quality 6061 T6 USA Made Aircraft Grade Aluminum is for motors with 30mm bolt spacing only. It replaces the factory insert and gives you much more range in the factory mount.

Compatible with either 20mm or 30mm long motor shafts
UP TO a 62mm motor. 62mm is tight, but it fits. The 60mm Castle Creations 2028 fits beautifully.
UP TO a 44t pinion on the factory 47t spur. TTC Range (Something I am about to try make a thing) Or Total Tooth Count will be 66-91 teeth. That means any combination of gearing that adds up to a total between 66-91 teeth will fit. (30t spur, 61t pinion =91... or 51t spur 40t pinion=91... 47t spur 19t pinion=66) This way you can figure out what will and won't fit quick and easy!

As for the pinion, my mount insert will run down to the factory sized pinion on the factory size spur. If you get a high kv motor that needs 30mm spacing, and also needs to run smaller gears, or you have switched to a smaller spur gear, you don't have to worry about an insert that is meant ONLY for big gears!
