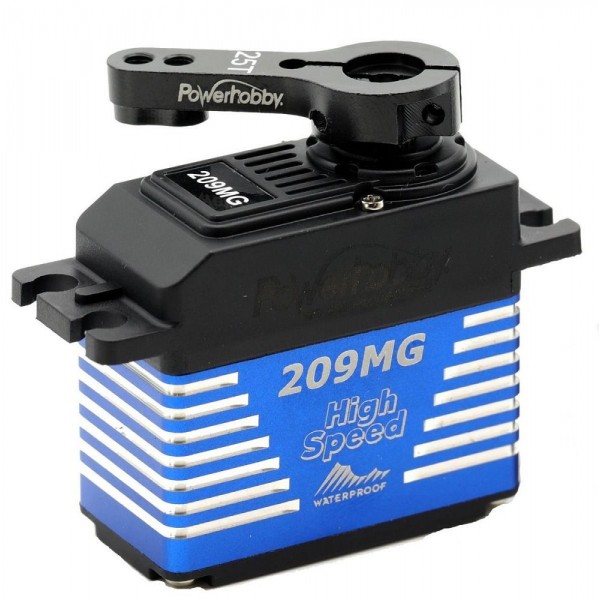

Overview
Perfect for scale crawlers, 1/8 1/10 monster truck, 1/8 1/10 2WD and 4WD buggies, as well as 1/8 scale buggies and trucks. In addition, this servo is a great choice for boats and other application which require high power, high voltage, and waterproof. Waterproof IP67 level up to 1 meter, which allows driving in rain, puddles, snow, and mud. Highly reliable and durable patented gear design. Aluminum middle case for fast heat dissipation. High precision digital control circuitry.
features
- High performance standard digital servo
- Built-in magnetic sensor
- Waterproof IP67
- High precision steel gears
- High efficiency brushless motor
- High strength dual ball bearings
- Middle Alumiunm case
- Ideal for 1/10, 1/8 on road, off road, truck/cars
Operating Voltage: 4.8-8.4 VSpecs
Operating speed: 0.09 sec/60 @ 6.0V
Operating speed: 0.75 sec/60 @ 7.4V
Operating speed: 0.65 sec/60 @ 8.4V
Stall Torque: 15kg - 208 oz-in @ 6.0V
Stall Torque: 18kg - 250 oz-in @ 7.4V
Stall Torque: 22kg - 275 oz-in @ 8.4V
Gear: Steel
Motor: Coreless
Size: 1.57 x 0.78 x 1.46 in. (40*20*37.2mm)
Weight: 1.87 oz. (53g)
Connector Wire: JR 300 mm
Spline: 25T- Specs
Product Specifications
Part Number PHBPH209MG Operating Voltage 4.8-8.4 V Operating speed 0.65 sec/60 @ 8.4V Stall Torque 22kg - 275 oz-in @ 8.4V Gear Steel Motor Coreless Size 1.57 x 0.78 x 1.46 in. (40*20*37.2mm) Weight 1.87 oz. (53g) Connector Wire JR 300 mm Spline 25T - Reviews
