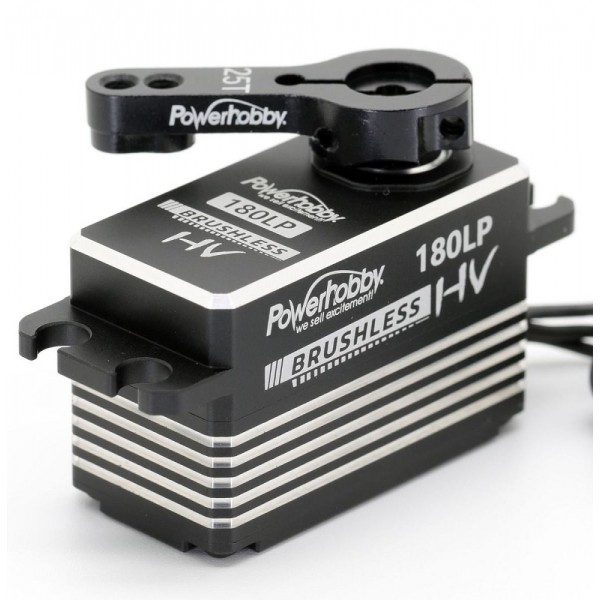

180LP Low Profile High Speed Brushless Digital High Voltage Servo by Power Hobby®. Aluminum Servo Horn and other hardware is included. Specifically Designed for 1/12 and 1/10 Scale Applications. This top-grade product is expertly made in compliance with stringent industry standards to offer a fusion of a well-balanced design and high level of craftsmanship. Manufactured from industry-leading materials using up-to-date equipment, it ensures everlasting reliability and enduring value. This product is distinguished by total quality assurance, unsurpassed by anybody else.
features
- High performance Low Profiledigital servo
- Built-in magnetic sensor
- High precision steel gears
- High efficiency brushless motor
- High strength dual ball bearings
- Full Alumiunm case
Operating Voltage: 4.8-8.4 VSpecs
Operating speed: 0.07 sec/60 @ 6.0V
Operating speed: 0.65 sec/60 @ 7.4V
Operating speed: 0.55 sec/60 @ 8.4V
Stall Torque: 13kg 180oz-in @ 6.0V
Stall Torque: 14.5kg 200oz-in @ 7.4V
Stall Torque: 16kg 220oz-in @ 8.4V
Gear: Steel
Motor: Brushless
Size: 40.8 x 20.2 x 26.1mm (1.60 x 0.79 x 1.02 in)
Weight: 62g
Connector Wire: JR 300 mm
Spline: 25T- Specs
Product Specifications
Part Number PHBPH180LP Operating Voltage 4.8-8.4 V Operating speed 0.55 sec/60 @ 8.4V Stall Torque 16kg 220oz-in @ 8.4V Gear Steel Motor Brushless Size 40.8 x 20.2 x 26.1mm (1.60 x 0.79 x 1.02 in) Weight 62g Connector Wire JR 300 mm Spline 25T - Reviews
