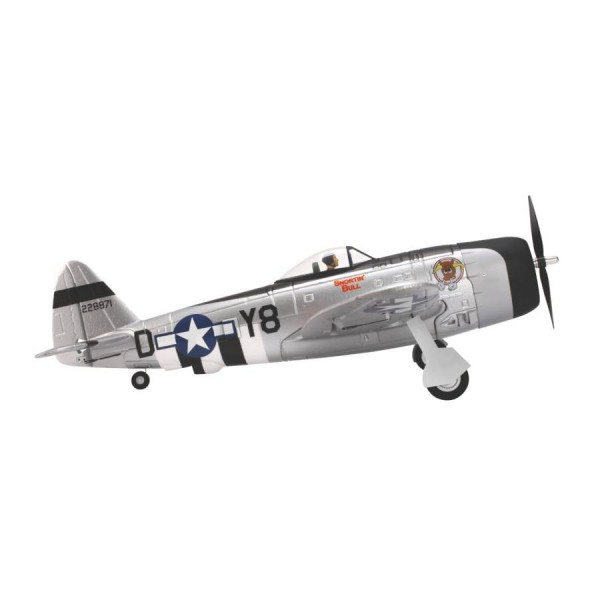

Park Zone P-47D Thunderbolt "The Jug" scale replica, BNF


LOADING IMAGES
Park Zone (PKZ) Logo Park Zone P-47D Thunderbolt "The Jug" scale replica, BNF
$249.99
This is the P-47D Thunderbolt BNF scale replica of a war plane. Powered by a brushless motor, lightweight Z-Foam, and ready to fly in minutes.

Availability: Please call for availability
We might still have one laying around..

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Overview

A replica if a ruthless war machine

Affectionately dubbed “The Jug,” Republic’s P-47D Thunderbolt was a swift, multi-role fighter that was as much of a menace to ground targets as it was enemy aircraft. Its rugged airframe, armored cockpit and eight .50-caliber machine guns allowed its pilots to fly into the teeth of heavy fire, devastate a ground target and still make it home despite significant damage.

ParkZone has brought The Jug to life with this great flying scale recreation that comes out of the box with details like a simulated radial engine, molded panel lines and a realistic 404th Fighter Group paint scheme. It’s even set up to let you easily add the option of functional flaps and retractable landing gear. And you can bet it flies every bit as good as it looks. The 15-size brushless motor and E-flite® 30A Pro brushless ESC that are installed for you will provide more than enough power for high-speed strafing runs and sport aerobatics.

Best of all, you can have this Bind-N-Fly® version flying in the time it takes you to charge the included battery pack and bind its Spektrum™ AR600 receiver to your full-range DSM2®/DSMX® aircraft transmitter. A minimum of 6 channels will be required if you want to add the optional flaps and retractable landing gear.

Includes:

  • 3S 11.1V 2200mAh 25C Li-Po battery and balancing charger included

Requires:

  • You will need a 4+ Channel DSM2/DSMX compatible Transmitter. 6+ Channels are required for flap and retract functionality.
  • For Retracts, you will need 10-15 size electric retracts ( EFLG100 ). For simple installation, also use the pre-bent struts ( PKZ5317 ).
  • For Flaps, you will need two (2) SV80 servos ( PKZ1081 ).

features

  • Full 4-channel control: aileron, elevator, rudder and throttle
  • E-flite® electric retracts ready (retracts sold separately - EFLG100 )
  • Optional flap control (requires two servos - sold separately)
  • Spektrum™ 2.4GHz DSMX® AR600 full range 6-channel receiver installed
  • E-flite 30A Pro brushless ESC installed
  • Powerful 15-size brushless outrunner motor installed
  • 3S 11.1V 2200mAh 25C Li-Po battery and balancing charger included
  • Includes removable fixed landing gear and steerable tail wheel
  • Includes clear protective belly skid for gear-off landings
  • Durable and lightweight Z-Foam™ construction
  • Ready to fly in minutes
  • Requires a full range DSM2®/DSMX® aircraft transmitter (sold separately)
  • This model is one of the many available for the Phoenix RC Flight Simulator

Specs

Approximate Assembly Time: Less than 1 Hour
Charger: 2-3 Cell DC Li-Po Balancing Charger (included),2-3 Cell DC Li-Po Balancing Charger (included)
Control Throw (Ailerons): Low: 7mm up/down; High: 11mm up/down
Control Throw (Elevator): Low: 8mm up/down; High: 12mm up/down
Control Throw (Flaps): Half Flap: 15mm down; Full: 25mm down
Control Throw (Rudder): Low: 15mm left/right; High: 20mm left/right
Flaps: Optional
Flying Weight: 40.0-42.5 oz (1130-1200g)
Recommended Fuel: Electric
Retracts: Optional
Wingspan: 42.2 in (1070mm)

Product Videos

Specs

Product Specifications

Part NumberPKZ5380
Kit TypeBNF
Approximate Assembly TimeLess than 1 Hour
Charger2-3 Cell DC Li-Po Balancing Charger (included),2-3 Cell DC Li-Po Balancing Charger (included)
Control Throw (Ailerons)Low: 7mm up/down; High: 11mm up/down
Control Throw (Elevator)Low: 8mm up/down; High: 12mm up/down
Control Throw (Flaps)Half Flap: 15mm down; Full: 25mm down
Control Throw (Rudder)Low: 15mm left/right; High: 20mm left/right
FlapsOptional
Flying Weight40.0-42.5 oz (1130-1200g)
Recommended FuelElectric
RetractsOptional
Wingspan42.2 in (1070mm)
