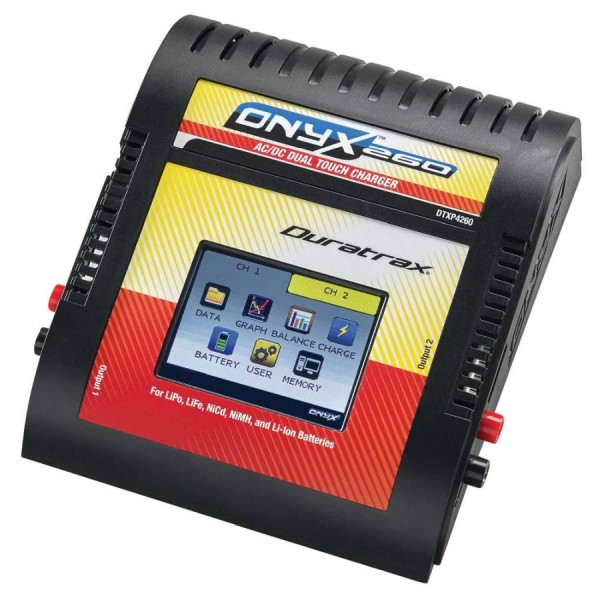

Onyx 260 AC/DC Touch Battery Charger

With the Onyx 260, you don't need old-school push-buttons to program; just gentle fingertip pressure and its brilliant 3.2" color touch screen. Touch it and you have instant access to two chargers with identical capabilities; touch it again, and you can choose battery chemistry, peak or balance charging, set up for charging one pack at a time or two at once…and view charging data the way you prefer to see it. You can have it as simple numbers against a colorful backdrop, or as points on a high-visibility color graph. For the modeler who wants the latest in programming ease and charging versatility, there's only one charger to consider: the Onyx 260.

• Lets you set up, operate and monitor data on a single, 3.2" color touch screen.
• Charge single lithium cells, peak 1-15 NiCd/NiMH cells and balance charge 2S-6S lithium packs.
• Offer a charge jack for 4-, 5- and 8-cell radio packs.
• Includes storage for up to 10 battery charging routines per output.
• Lets you customize sound cues, text color and backlighting to your preferences.
• Includes 110VAC power lead, plus a DC power lead with alligator clips for easy hookup.
• Feature a compact 60W AC power supply and 0.1-6A fast charge rates.
• Come with a 2-6S balancing board and both standard and Star Plug adapters.

AC input: 110V AC 60Hz
AC Input Cord/Connector: Detachable lead w/plug
DC Input (V): 11.0-15.0
DC Input Cord/Connector: Detachable lead w/clips
Number of Outputs: 2
Cell Chemistry and Number of Cells: 1-15 NiCd and NiMH; 1-6S Lithium
Fast Charge Current (A): 0.1-6.0 (60W) 120W total
Fast Charge Termination: Peak (for NI); cc/cv (for Li)
Peak Sensitivity (mV): 10-20 (Adjustable)
Auto-Trickle: Yes
Trickle Charge Rate (mAh): 1/20 of fast charge current (auto); 0-250 (manual)
Max. Node Current (mA): 300
Programmable: Yes
Number of Memories: 10 per output; 20 total
Main Output/Connector(s): Banana jacks; leads w/standard and Star Plug adapters
Radio Battery Charge Jack/Connector: 4-, 5- & 8-C NiCds, NiMHs and universal radio
Balancing Jack/Connector: Balancing boards with JST XH plugs
Balancing Accuracy: 5 mV per cell
Control(s): Full color 3.2" touch screen
Display Type: Full color 3.2" touch screen
Data Displayed: Cell chemistry; input, output, peak and cell voltages; charge current, time & capacity; errors and alerts
Dimensions: 6.0" x 2.75" x 7.25" (152mm x 70mm x 184mm)
Weight: 18.8oz (5533g)
Safety Timer (min): 0-300 (adjustable)
Other Safety Features: Reverse polarity, current overload protection and fan
Audible Alerts: Start, stop, errors and setup
