No Superior Designs RC RS100 High Torque Micro Servo


LOADING IMAGES
No Superior Designs RC RS100 High Torque Micro Servo
$54.99
This is a No Superior Designs RC part #NSD-MSRVO, RS100 High Torque Micro Servo, an outstanding choice for applications that demand a reliable, durable, and powerful micro servo without breaking the bank

Availability: Please call for availability
We might still have one laying around..

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Overview

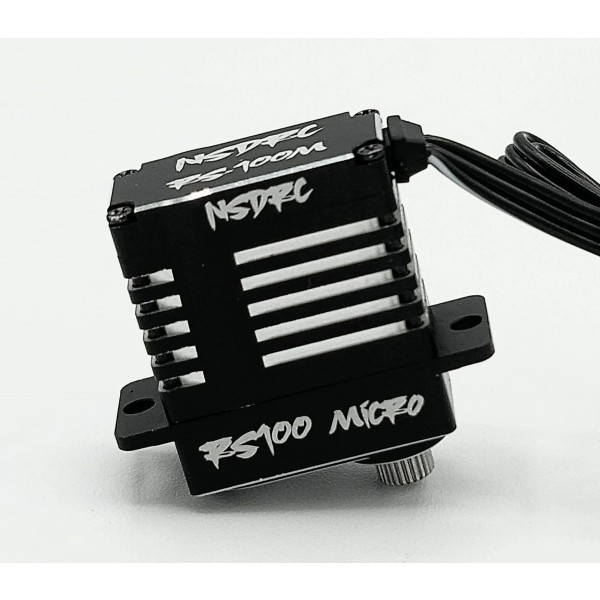

Introducing the Superior Designs RS100 High Torque Micro Servo—an outstanding choice for applications that demand a reliable, durable, and powerful micro servo without breaking the bank. Upgraded with a powerful motor and heavy-duty stainless steel gears, the RS100M micro servo delivers supreme power delivery and exceptional durability. Its black anodized, all CNC-machined aluminum case ensures a sleek appearance while providing water resistance with a 7-point O-ring seal for added protection. The servo's hardened stainless steel gears are designed for maximum durability, ensuring reliable performance in demanding situations. Equipped with a high-quality angle sensor and high voltage (HV) capability, the RS100M micro servo guarantees precise control and impressive power delivery. Embrace the performance and durability of the Superior Designs RS100 High Torque Micro Servo for your micro-sized applications.

Includes:

  • (1) RS100 High Torque Micro Servo
  • Multiple composite horns
  • Mounting screws, bushing and rubber grommets

Notes:

Not Submarine proof, do not submerge.
Aluminum Servo horn shown in pictures is for illustrative purposes only. Only composite horns are included.
Micro BEC is recommended for Micro servos being used in 1/24 and 1/18 Micro platforms. Stock Micro RC electronics are typically pretty weak and need a boost in order to run high power servos properly.

features

  • Perfect upgrade and fit for micro 1/24 crawlers, mini 1/18 scale platforms and shift or dig functions on 1/10 scale crawlers
  • Black anodized all CNC-machined aluminum Case
  • Water Resistant with 7-point O-ring seal
  • Hardened Stainless Steel Gears
  • Two ball bearing design
  • High quality Angle Sensor
  • High voltage (HV) capable

Specs

Type: Standard Micro
Motor Type: Coreless
Operating Voltage: 6V - 8.4V
Gears: Hardened Stainless Steel
Spline: 25T (4.9mm - Micro)
Dimension (LxWxH): 26x23x12mm
Weight: 20g
Case: CNC-Machined Aluminum
Torque (6V): 152oz/ 11kg
Torque (7.4V): 175oz/ 12.7kg
Torque (8.4V): 197oz/ 14.2kg
Speed (6V): 0.09 sec/60°
Speed (7.4V): 0.07 sec/60°
Speed (8.4V): 0.06 sec/60°
Specs

Product Specifications

Part NumberNSD-MSRVO
TypeStandard Micro
Motor TypeCoreless
Operating Voltage6V - 8.4V
GearsHardened Stainless Steel
Spline25T (4.9mm - Micro)
Dimension (LxWxH)26x23x12mm
Weight20g
CaseCNC-Machined Aluminum
Torque (6V)152oz/ 11kg
Torque (7.4V)175oz/ 12.7kg
Torque (8.4V)197oz/ 14.2kg
Speed (6V)0.09 sec/60°
Speed (7.4V)0.07 sec/60°
Speed (8.4V)0.06 sec/60°
