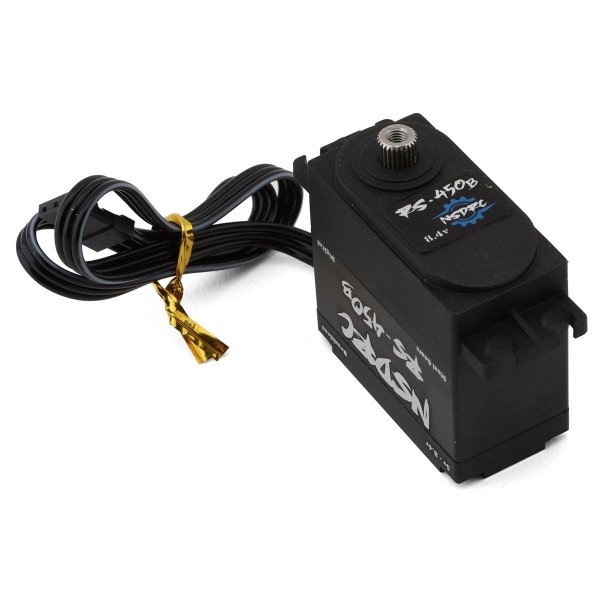

No Superior Designs RC RS450 High Torque Budget Waterproof Brushless Servo


LOADING IMAGES
No Superior Designs RC RS450 High Torque Budget Waterproof Brushless Servo
$64.99
This is a No Superior Designs RC part #NSD-RS450, RS450 High Torque Budget Waterproof Brushless Servo, featuring hardened stainless steel gears.

Availability: In stock*

Only 4 left

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Overview

This is the RS450 High Torque Budget Brushless Servo from No Superior Designs RC, designed with hardened stainless steel gears, and a powerful 4-pole brushless motor to inexpensively redefine speed, power, and precision in RC applications. With an astonishing 465oz-in of torque and fast 0.08 transit speed at 8.4V, the RS450 is a great choice for people looking for high capabilities without hurting the bank!

Includes:

  • hardened stainless steel gears

features

  • Extreme Performance: Delivers 465oz-in of torque and 0.08 transit speed at 16.8V
  • Durable Construction: CNC aluminum middle and bottom case for enhanced heat dissipation and durability
  • Robust Gear Train: Hardened stainless steel gear train ensures smooth and reliable operation under demanding conditions
  • High-Efficiency Motor: Powered by a high-quality brushless 4-pole motor for next-level precision and performance

Specs

Speed @6.0V: 0.11sec/60°
Speed @7.4V: 0.09sec/60°
Speed @8.4V: 0.08sec/60°
Torque @6.0V: 360oz-in (26kg-cm)
Torque @7.4V: 415oz-in (30kg-cm)
Torque @8.4V: 465oz-in (34kg-cm)
Motor: Brushless
Operating Voltage: 5.0-8.4V
Operating Temp.: 14F-122F (-10C/50C)
Dimensions(LxWxH): 1.6"x0.8"x1.55" (40.7x20.4x39.5mm)
Weight: 2.5oz (71g)
Operating Spline: 25T
Specs

Product Specifications

Part NumberNSD-RS450
Speed @6.0V0.11sec/60°
Speed @7.4V0.09sec/60°
Speed @8.4V0.08sec/60°
Torque @6.0V360oz-in (26kg-cm)
Torque @7.4V415oz-in (30kg-cm)
Torque @8.4V465oz-in (34kg-cm)
MotorBrushless
Operating Voltage5.0-8.4V
Operating Temp.14F-122F (-10C/50C)
Dimensions(LxWxH)1.6"x0.8"x1.55" (40.7x20.4x39.5mm)
Weight2.5oz (71g)
Operating Spline25T
