Overview

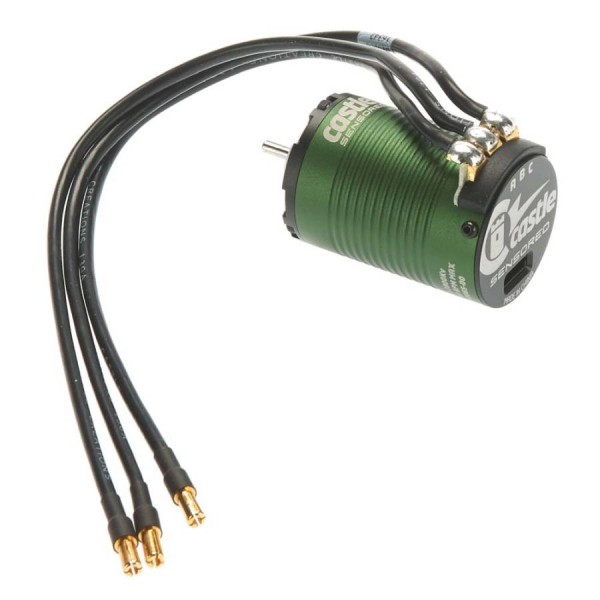

Castle Creations 1410 Sensored 4-Pole Brushless Motors combine rotor position sensor technology with an improved high power and high efficiency motor design to deliver ultra smooth startup, precise low speed control, predictable power delivery, incredible torque, and lightning fast response. Through the use of Castle's Smart Sense technology, the position of the rotor is always known by the ESC. This eliminates the possibility of encountering cogging or inconsistency during startup, and allows the 1406 to deliver PRECISE throttle control and BUTTERY SMOOTH starts - with the RAW POWER and LONGER RUN TIMES that Castle motors are known for
features
- Kevlar wrapped rotor
- Hardened stainless steel shaft
- High RPM NMB oversized bearings
- 6061-T6 Billet aluminum heatsink can
- High quality 0.2mm steel laminations
- HIGHER PRECISION and MORE EFFICIENT startups
- Low resistance gold plated bullet connectors
- High quality, temperature-stabilized sensors
- High-purity, high-temperature copper windings
- High strength 180°C neodymium sintered magnets
- 13 AWG high strand wire with silicone insulation
- ROAR standard sensor port and labeled connections
- OPTIMIZED design eliminates the need for mechanical timing adjustments
- Oversized gold plated solder tabs for LESS RESISTANCE and easy soldering
- 4-POLE 12-SLOT design boasts exceptional EFFICIENCY and produces LESS HEAT
- REBUILDABLE design allows users to replace front end bell with bearings or rotors with shaft
- Sensor alignment method delivers uniform timing and torque in both directions, automatically
- QUIETSENSE™ Technology shields magnetic field noise generated from the motor coils and keeps motor and ESC in sync at all times
Input Voltage Range: 2-3S LiPoSpecs
Kv: 3800
Max. RPM: 100,000
Length: 52.7mm
Diameter: 36mm
Weight (w/wires): 237g / 8.4oz
Shaft Length: 15mm
Shaft Diameter: 1/8" (3.17mm)
Mounting Hole Specifications: M3 @ 25mm
Cooling Fan: Optional - not included
Connectors: 4mm male Castle Bullet Connectors
Application Guidelines: Ideal for 1:10 scale 2WD and 4WD SCT up to 6.5lb (2S) as well as 1:10 scale buggies and stadium trucks up to 4lbs (2S-3S).
Recommended ESC(s): Mamba Max Pro, Mamba X, Monster XEFFICIENCY IS KEY:Features Overview
The higher the efficiency of a motor the more power it can produce without overheating, which allows you to safely run higher gear ratios. The higher the efficiency of a motor, the less power it takes to produce the same output power, which allows you to run longer on a single charge. The higher the efficiency of the motor, the less energy it turns into heat; keeping it cool under extreme loads. Efficiency equals performance.
RELIABILITY CAN’T BE IGNORED:
Without a robust and reliable design, efficiency will only go so far. The Castle engineers know this and spared no expense when developing a design that could hold up to the harsh conditions that the RC community will throw at it. Oversized NMB bearings and vibration dampening system ensure the longest bearing life possible. High-strength, high-temperature grade neodymium sintered magnets combined with a high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions. Proprietary winding techniques allow Castle to produce a stator assembly that is the lowest possible resistance, resulting in a cooler running motor. A cooler motor has a longer lifetime. Construction required careful component selection; each verified through internal testing to ensure the highest efficiency possible. In the end, the result is a motor with unmatched quality, performance, and reliability.
INTEGRATED SOPHISTICATION:
Castle engineers always add a little something extra in their designs that takes your performance to the next level. When paired with a Castle Creations sensor supported ESC, like the MAMBA MICRO X, MAMBA MAX PRO or MAMBA MONSTER X, you can unlock advanced tuning capabilities that Castle Link provides specifically for sensored motors. With a Castle sensored ESC and sensored motor you will have the ULTIMATE POWER PLANT for your vehicle.
SMARTSENSE™:
SMARTSENSE uses the motors sensors to start the motor to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle’s ULTRA- EFFICIENT sensorless mode. When running, a motor must transition between different load points and a different timing advance is required for optimal efficiency at all load points. Using mechanical timing adjustments alone, you can only target one driving condition, such as higher start power or higher top end speed. This sacrifices performance and efficiency during the other driving phases. Electronic timing in SMARTSENSE will advance timing automatically for peak performance during all driving conditions. This allows users to combine the best of both worlds in an unrivaled HYBRID between smooth sensored startups and high-efficiency sensorless drive.- Specs
Product Specifications
Part Number CSE060-0065-00 Input Voltage Range 2-3S LiPo Kv 3800 Max. RPM 100,000 Length 52.7mm Diameter 36mm Weight (w/wires) 237g / 8.4oz Shaft Length 15mm Shaft Diameter 1/8" (3.17mm) Mounting Hole Specifications M3 @ 25mm Cooling Fan Optional - not included Connectors 4mm male Castle Bullet Connectors Application Guidelines Ideal for 1:10 scale 2WD and 4WD SCT up to 6.5lb (2S) as well as 1:10 scale buggies and stadium trucks up to 4lbs (2S-3S). Recommended ESC(s) Mamba Max Pro, Mamba X, Monster X - Reviews
