- Overview
Overview

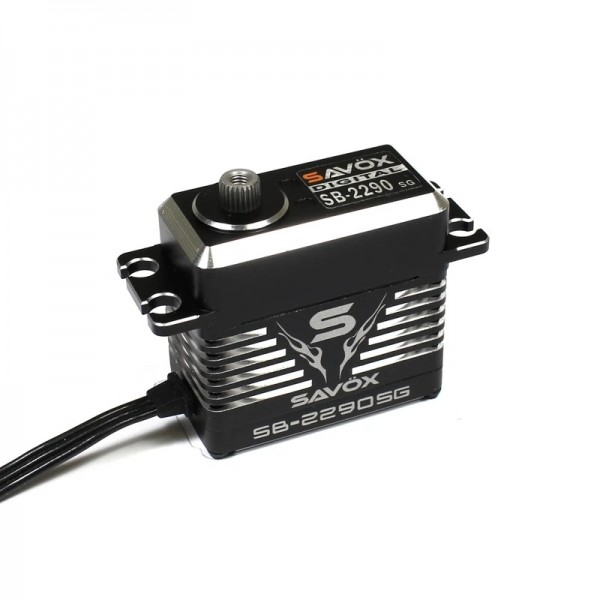

The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.
features
- Full Aluminum Case
- 3 Precision Ball Bearings.
- Unique steel gears
- Torque @ 6v - 40.0kg/555.5oz-in
- Torque @ 7.4v - 50.0kg/694.4oz-in
- Torque @ 8.4v - 65.0kg/902.7oz-in
- Speed @ 6v - 0.16 sec/60 deg
- Speed @ 7.4v - 0.13 sec/60 deg
- Speed @ 8.4v - 0.11 sec/60 deg
- Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
- Weight: 81g
Operating Temperature: 14° - 122°F (-10° - 50°C)Specs
Running Current (no load): 180mA @6.0V, 220mA @7.4V
Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V
Idle Current: 5mA @6.0V, 5mA @7.4V
Wire Length: 300 +/- 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 333 Hz
Motor Type: Brushless- Specs
Product Specifications
Part Number SAVSB-2290SG Operating Temperature 14° - 122°F (-10° - 50°C) Running Current (no load) 180mA @6.0V, 220mA @7.4V Stall Current (at locked) 7500mA @6.0V, 9200mA @7.4V Idle Current 5mA @6.0V, 5mA @7.4V Wire Length 300 +/- 5mm Output Gear Spline 25 Tooth Bearings 2BB Operating Travel 100° (1000 → 2000 µ second) Neutral Position 1500 µ second Pulse Width Range 800 → 2200 µ second Maximum Travel Appx 130° (900 → 2100 µ second) Refresh Rate 333 Hz Motor Type Brushless - Reviews
