Overview

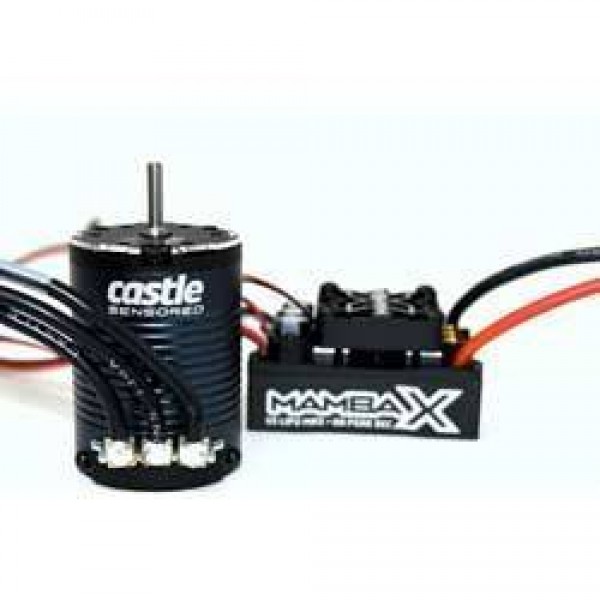

The Mamba X Crawler edition is our latest offering for the crawling crowd. We have taken our new 1406 low kv crawler motors and paired it with the high power, ultra reliable Mamba X ESC. This combo is ideal for low speed crawling or trail running in vehicles weighing up to 9lbs on 2s; it can also be used in more aggressive setups like rock racing and extended hill climbing on vehicles up to 5lbs. It can also be used in 2WD buggies, stadium trucks and 4WD touring cars; equivalent in RPM output to approximately a 10.5 turn. Your ESC will come with our new V2.02 firmware that has been enhanced for rock crawling and sensored operation.
Includes:
- Mamba X Electronic Speed Controller
- 1406-3800kv sensored brushless motor
- 210mm length sensor wire (for sensored operation)
- Castle Sensor Harness adapter
- Coupon for free Castle Link USB adapter
- Driver's Ed and Quick Start Guides
- Castle decal sheet
features
- INPUT VOLTAGE RANGE OF 2S-4S (with included motor) with an internal 8A ADJUSTABLE BEC (5.25V-8.0V)
- Removable 30MM COOLING FAN
- Recon G6 Certified
- Paired with the improved 4-POLE 12-SLOT SENSORED1406-2280KV SLATE motor provides precise throttle control and buttery smooth starts
- Convenient TRANSMITTER PROGRAMMING for six common adjustable settings.
- Access to Castle’s INDUSTRY LEADING SOFTWARE with use of Castle Link USB (coupon included for free USB with purchase)
- DATA LOGGING captures and records performance data for maximum optimization of both performance and battery life
- AUXILIARY WIRE FUNCTIONALITY allows for “on-the-fly” adjustments such as ROCK RACE/CRAWLER MODE. These adjustments can be made real time, while driving, right from your transmitter.
- Castle’s SMARTSENSE™ software, enabled by default in the Castle Link Programming Suite
- QUIETSENSE™ is an innovative advancement in the design of sensored motors to deliver the highest precision and most efficient startup.
- ESC SPECS:
- Input Voltage Range:
- MIN: 2S LiPo
- MAX: 6S LiPo (25.2V) (3s max with included 3800kv motor)
- BEC Specifications: Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
- Operating Environment: Waterproof* design allows for use in nearly any environment.
- Brake: Proportional
- Reversible: Yes, but may be disabled for racing.
- On/Off Switch: Yes
- Cooling Fan: Yes, factory equipped (30mm), fully removable** (see Product Use Statements below)
- Size:
- Length: 2.14" (54.4mm)
- Width: 1.39" (35.2mm)
- Height: 1.18" (30.0mm)
- Weight (with wires): 3.56 oz. (101g)
- Items Needed for Operation:
- Battery Connector required
- Castle 6.5mm Polarized Connectors
- or Castle 4.0mm Polarized Connectors
- or Traxxas® Power Connectors
- or Deans® Ultra Plugs are recommended.
- Max. Recommended Vehicle Weight:
- Less than 9lbs, with batteries, ready-to-run with included 1406 - 3800kv motor in low speed crawlers; 5lbs maximum for more aggressive setups like rock racing and extended hill climbing
- Programmability:
- Fully programmable Castle feature set using Castle Link USB adapter (coupon for free link included in package) and freely downloadable Castle Link Windows software.
- Telemetry Link Capable: Yes
- Tech Notes:
- Mamba X setups frequently hit 100+ amps in peaks and not all LiPos are created equal. Surge ratings should never be used to determine a pack's suitability for a brushless application. Recommended battery capacity for 1: 8th scale vehicles is 5000mAh. We recommend using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell).
- Our experience suggests using only mild gear ratios with NiMH cells. Do not attempt to use NiMH cells in extreme setups.
- Applying voltages higher than 25.2V will cause irreparable damage to ESC.
- We recommend a high-current connector designed for high-powered electric systems, rated for 70+ amps. Invest in connector sets made for high-powered electric systems such as our Castle 6.5mm Polarized Connectors, Castle 4.0mm Polarized Connectors, Traxxas® Power Connectors, or Deans® Ultra Plugs.
- Product Use Statements:
- *Although Mamba X is waterproof, it is not intended for operation while completely submerged in liquid. T Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.
- **The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.
- Connectors: 4.0mm female bullets for motor connection.
- MOTOR SPECS:
- Input Voltage Range: 2S-3S LiPo
- Kv: 2850
- Max. RPM: 100,000
- Size:
- Length: 49.5mm
- Diameter: 36mm
- Weight (w/wires): 197 g / 6.9oz
- Shaft Size:
- Length: 15mm
- Diameter: 1/8" (3.17mm)
- Mounting Hole Specifications: M3 @ 25mm
- Cooling Fan: Optional - Coming Soon
- Connectors:
- 4mm male Castle Bullet Connectors attached to replaceable 13 gauge wire;
- includes 210mm length sensored wire.
- Application Guidelines:
- Ideal for 1: 10 scale low speed rock crawlers/trail runners on 2S weighing less than 9lbs. Can also be used in more aggressive setups in lighter 1:10 scale touring cars, stadium trucks or buggies weighing up to 5lbs.
- Max. Recommended Vehicle Weight:
- 9lbs when used for low speed/moderate driving style like rock crawling and trail running;
- 5lbs for more racing and aggressive driving styles.
- Tech Notes:
- Running modes: SMARTSENSE™, Sensored, Sensorless with Castle sensored capable ESCs.
- Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
- Specs
Product Specifications
Part Number CSE010-0155-11 - Reviews
