Overview

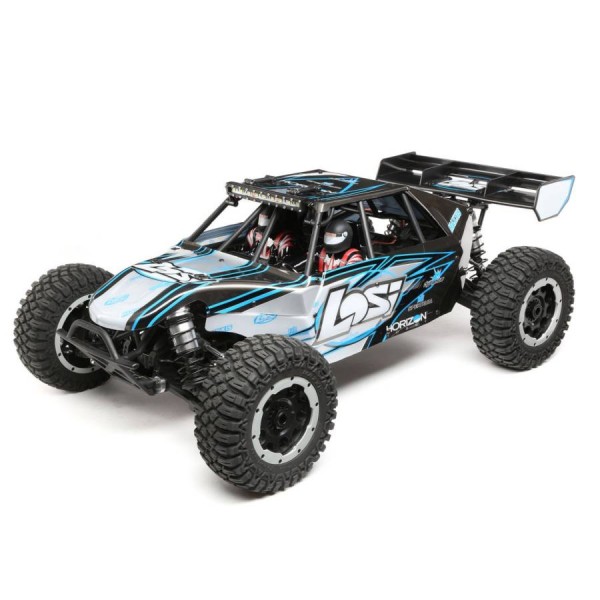

Tower over the competitionWhen you want large scale electric power, choose the Losi® 1/5 DBXL-E. This fearless basher offers speeds of 50+ mph* on 8S power. The DBXL-E is faster, cleaner and easier to use than its gas counterpart, the DBXL. And with the inclusion of an AVC system, you'll have control at all times, whether you're tearing up the terrain or flying across the pavement, wet or dry. Plus, its new centered drivetrain adds efficiency and durability, while the 800Kv motor will rocket you wherever you want to go. The DBXL-E is the definition of next-level awesomeness.
Includes:
- (1) Losi 1/5 Desert Buggy XL-E 4WD RTR
- (1) Spektrum™ DX2E 2.4GHz Transmitter
- (1) Spektrum SRS4220 4-Channel DSMR® AVC Surface Receiver
- (1) Dynamite 1/5th BL Motor 800Kv
- (1) Dynamite Fuze 160A BL WP 1/5th ESC
- (1) Losi S900S 1/5 Scale Steering Servo with Metal Gears
- (4) AA Batteries
- (1) Bind Plug
- (1) Tool Set
- (1) User Manual
Requires:
- (2) 11.1V 5000mAh 3S or 14.8V 5000mAh 4S 50C LiPo Battery with EC5™ connector
- Balance Charger capable of charging a 3 to 4 cell LiPo with an EC5™ connector
- Threadlock
Notes:
*Optional 14T pinion, 48T Spur and 8S HV LiPo battery required to achieve 50+ MPH.
features
- No-hassle 1/5 scale electric
- Flip top cage
- LED light bar
- Dynamite 800Kv brushless power system
- Spektrum™ AVC® technology
- Revised shock package
- New wing and wing mount
- Waterproof electronics
- Chassis brace plate
- Aluminum center differential
- Updated body panels and driver interior
- New molded foam insert
- MAXXIS Creepy Crawler tires
- Includes Spektrum DX2E transmitter with AVC adjustment
Approximate Assembly Time: No assembly requiredSpecs
Ball Bearings: Full Ball Bearing Drivetrain
Batteries: 14.8V 5000mAh 50C 4s LiPo Recommended x2 (Not Included)
Body: Screened Desert Buggy
Charger: Not Included
Chassis: 4mm Plate, 6061-T6 Aluminum
Completion Level: Ready-To-Run
Differential: Fluid Filled, Bevel Gear
Drivetrain: 4WD
Final Drive Ratio: 12.81:1
Gear Pitch: 1.5 Module
Ground Clearance: 2.75 in (69mm)
Height: 12.12 in (308mm)
Internal Gear Ratio: 3.33:1
Length: 33.25 in (844mm)
Motor Size: 57 x 114mm
Motor Type: Non-Sensored Brushless
Pinion: 13T
Radio: Spektrum DX2E 2-Channel with AVC
Servos: Included
Shock Type: Aluminum, Oil-Filled, Coil-Over Spring
Size/Scale: 1/5
Speed Control: Dynamite Fuze 160A
Spur Gear: 50T
Suspension: Independent
Tire Diameter: 7.5 in (190mm)
Tire Tread: Maxxis Creepy Crawler
Vehicle Type: 4WD Buggy
Water-Resistant: Yes
Weight: 27.5 lbs w/o batteries (12.5 kg), 30.5 lbs w/batteries (13.8kg)
Wheel Hex Size: 24mm Hex
Wheelbase: 21.75 in (552mm)
Width: 19.75 in (501mm)Product Videos
Dynamite® 800Kv Brushless Power System:Features Overview
The DBXL-E comes equipped with a Dynamite Fuze™ 800Kv brushless motor and a 1/5 8S Fuze Brushless ESC. Together, they will allow you to slingshot across the terrain at speeds of 50+ mph* on 8S power.
Flip Top Cage:
The new flip top cage makes accessing batteries incredibly easy-all while maintaining the protection of a full roll cage.
LED Light Bar:
Run through the night with an LED light bar that adds realistic off-road looks and function. You now have the flexibility to drive day or night, whenever you want.
Revised Shock Package:
The new O-ring and shock guides provide this basher with an improved feel, enhanced performance and upgraded tunability.
Waterproof Electronics:
The receiver, servo and ESC are all waterproof so you can run anytime, rain or shine.
Aluminum Center Differential:
If the vehicle wasn't tough enough already, the Losi development team has upgraded the center differential to aluminum for added strength and durability-all to handle the large electric motor's enormous power.
The Full-Throttle Freedom of AVC® Technology:
When you're ready to let the brushless motor off the chain, don't hold back. The receiver's built-in AVC (Active Vehicle Control®) system will work behind the scenes, making hundreds of tiny throttle and steering adjustments per second, so more of the motor's power is translated into ballistic speed and acceleration instead of just flying dirt. An AVC adjustment knob on the included DX2E transmitter lets you adjust how much traction control the system provides. You can even turn it off.
Chassis Brace Plate:
A new brace plate adds rigidity and stability to the chassis, giving the vehicle increased strength and durability so you can take on obstacles, jumps and pretty much anything in your path.
MAXXIS Creepy Crawler Tire:
Genuine MAXXIS creepy crawler tread pattern tires provide added traction and offer extra control so you can stop, turn and swerve like a pro.- Specs
Product Specifications
Part Number LOS05012T2 Scale 1/5 Drivetrain 4WD Kit Type No Battery Approximate Assembly Time No assembly required Ball Bearings Full Ball Bearing Drivetrain Batteries 14.8V 5000mAh 50C 4s LiPo Recommended x2 (Not Included) Body Screened Desert Buggy Charger Not Included Chassis 4mm Plate, 6061-T6 Aluminum Completion Level Ready-To-Run Differential Fluid Filled, Bevel Gear Drivetrain 4WD Final Drive Ratio 12.81:1 Gear Pitch 1.5 Module Ground Clearance 2.75 in (69mm) Height 12.12 in (308mm) Internal Gear Ratio 3.33:1 Length 33.25 in (844mm) Motor Size 57 x 114mm Motor Type Non-Sensored Brushless Pinion 13T Radio Spektrum DX2E 2-Channel with AVC Servos Included Shock Type Aluminum, Oil-Filled, Coil-Over Spring Size/Scale 1/5 Speed Control Dynamite Fuze 160A Spur Gear 50T Suspension Independent Tire Diameter 7.5 in (190mm) Tire Tread Maxxis Creepy Crawler Vehicle Type 4WD Buggy Water-Resistant Yes Weight 27.5 lbs w/o batteries (12.5 kg), 30.5 lbs w/batteries (13.8kg) Wheel Hex Size 24mm Hex Wheelbase 21.75 in (552mm) Width 19.75 in (501mm) - Reviews
