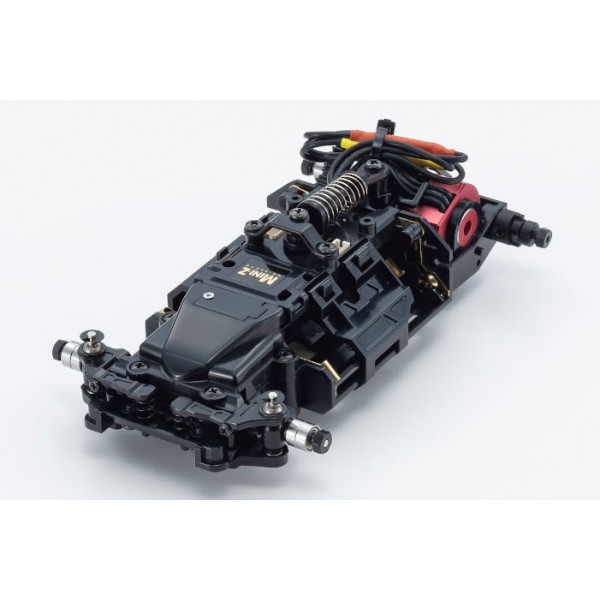

Kyosho MR-03EVO Mini-Z W-MM Brushless Chassis Set, 8500kV


LOADING IMAGES
Kyosho (KYO) Logo Kyosho MR-03EVO Mini-Z W-MM Brushless Chassis Set, 8500kV
$189.99
This is a Kyosho part #32799, MR-03EVO Mini-Z W-MM configured chassis equipped with a high-performance 8500kV motor, EVO chassis set is the perfect step up from the Readyset.

Availability: Please call for availability
We might still have one laying around..

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Overview

First released in December 2018 the MR-03EVO series delivered amazingly fast processing speed and featured a separate receiver board that provided the flexibility of transmitter choice. Two years after its stunning debut, the MR-03 EVO lineup has been strengthened with a race-based chassis. A 8500KV motor is combined with a standard specification chassis that you can customize to your liking with various optional parts available.While retaining the full bearing specifications and Ball Diff Set II, align the base chassis with the new standard speed range and open a wider group of users. From the compatible receiver units : RA-40 (EX-6R / EX-II / EX-RR/EX-LDT); RA-41 (KT-531P / KT-432PT); RA-42 (Futaba T7PX / T7XC / T4PM), and RA-43 (Flysky Noble NB4), the RA-41 provides the optimal step-up from the Readyset. Perhaps the MR-03EVO chassis set’s greatest advantage is that it can also be combined with a brushed motor (No.MZ9E, sold separately) to adapt to an even wider range of driving conditions.

Includes:

  • MR-03W-MM Factory assembled chassis with KYOSHO SPEED HOUSE XSPEED 85 KV8500 brushless motor
  • Parts set for changing front tread
  • 6T, 7T, 8T, 9T Pinion gears
  • Wheel wrench
  • Tools for pinion gears
  • Spare wheel nuts

Requires:

  • Receiver unit
  • Transmitter compatible with receiver unit
  • Auto Scale Collection (body set, wheels, tires)
  • AAA x 4 alkaline batteries or Ni-MH batteries for chassis
  • Batteries for transmitter

features

  • First MINI-Z MR-03 Chassis Set that adopts separate ESC and receiver design.
  • Includes new KYOSHO SPEED HOUSE XSPEED 85 brushless motor (8500KV).
  • I.C.S manager features detailed steering and throttle parameter adjustment, as well as switching between brushless and brushed modes.
  • Powered by independent CPUs for ESC and receiver, increased internal processing speed contributes to precision steering and throttle control.
  • Equipped with ball bearings and Ball Diff Set II. *Newly designed separate receiver cover and front upper arm mount make tread adjustment easier. *Compatible with optional parts for the MR-03 chassis.

Specs

Length: 123.5mm
Width: 70-76mm
Height: 35mm
Wheelbase: 98.0mm (L)
Tread: F:61.5-65.0mm/R:61.5-65.0mm
Motor Mount: MM
Tires: (F/R) 25×8.5mm (sold separately)/25×8.5-11mm (sold separately)
Gear Ratio: 7.3, 6.3, 5.5, 4.9:1
Weight: 135g (approx.)
Motor: KYOSHO SPEED HOUSE (XSPEED 85) KV8500
Specs

Product Specifications

Part NumberKYO32799
Length123.5mm
Width70-76mm
Height35mm
Wheelbase98.0mm (L)
TreadF:61.5-65.0mm/R:61.5-65.0mm
Motor MountMM
Tires(F/R) 25×8.5mm (sold separately)/25×8.5-11mm (sold separately)
Gear Ratio7.3, 6.3, 5.5, 4.9:1
Weight135g (approx.)
MotorKYOSHO SPEED HOUSE (XSPEED 85) KV8500
